6. Remove Sensor (booklet unit media exit) (A).

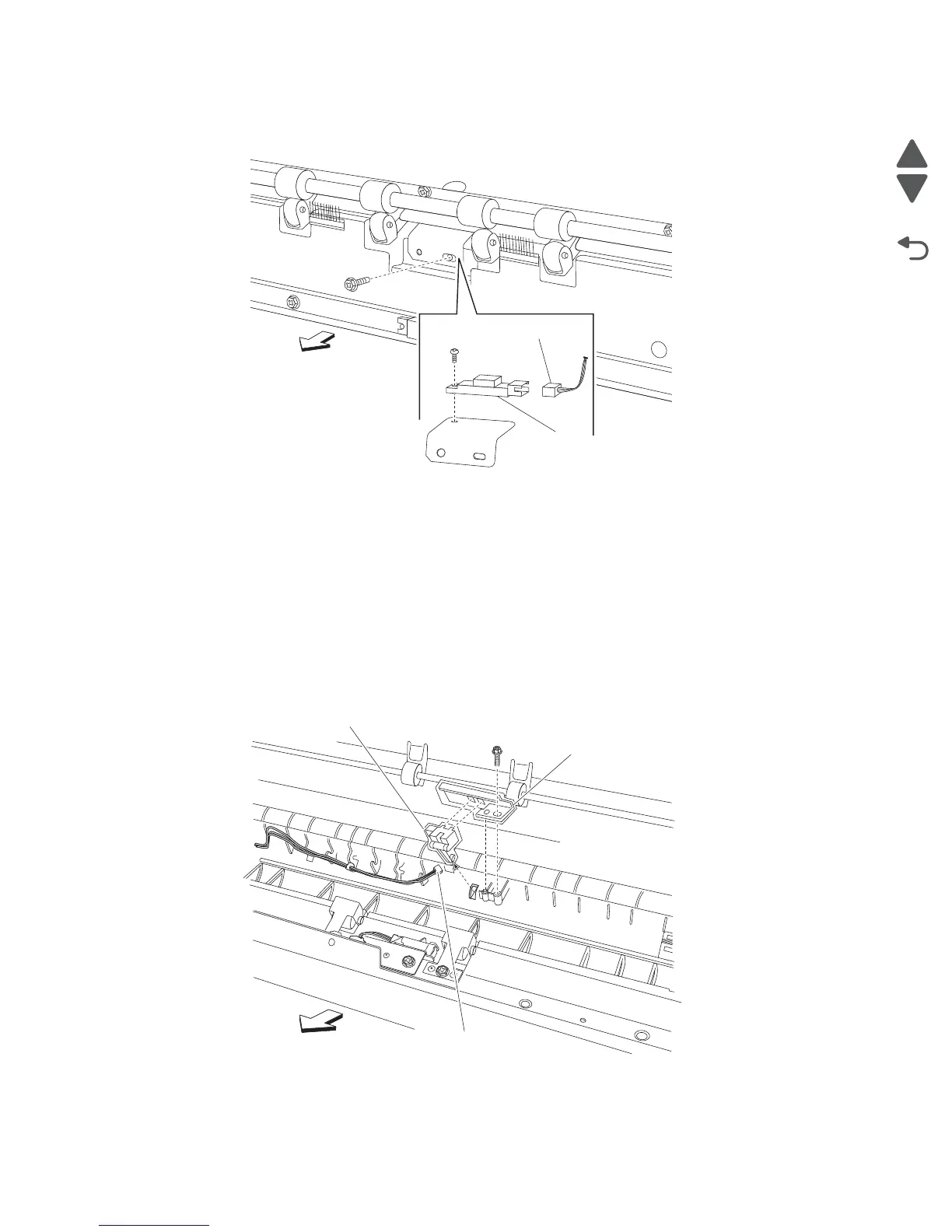

Sensor (buffer path) removal
1. Open the finisher front door assembly.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
4. Remove the top cover. See “Top cover removal” on page 4-351.
5. Remove the left lower cover. See “Left lower cover removal” on page 4-288.
6. Remove the left upper cover. See “Left upper cover removal” on page 4-289.
7. Remove the punch carriage assembly. See “Punch carriage assembly removal” on page 4-304.
8. Disconnect the connector from the sensor (buffer path) (A).
9. Remove the screw securing the bracket (B) to the finisher.
10. Remove the bracket (B).
11. Release the hooks securing the sensor (buffer path) (A) to the bracket (B).
12. Remove the sensor (buffer path) (A).
Connector
A
Right
A
B
Left
Connector
