5. Disconnect the connector from the booklet diverter gate (A).
Booklet end guide drive motor removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the booklet unit assembly left cover. See “Booklet unit assembly left cover removal” on
page 4-262.
3. Disconnect the connectors from the sensor (booklet end guide drive motor).

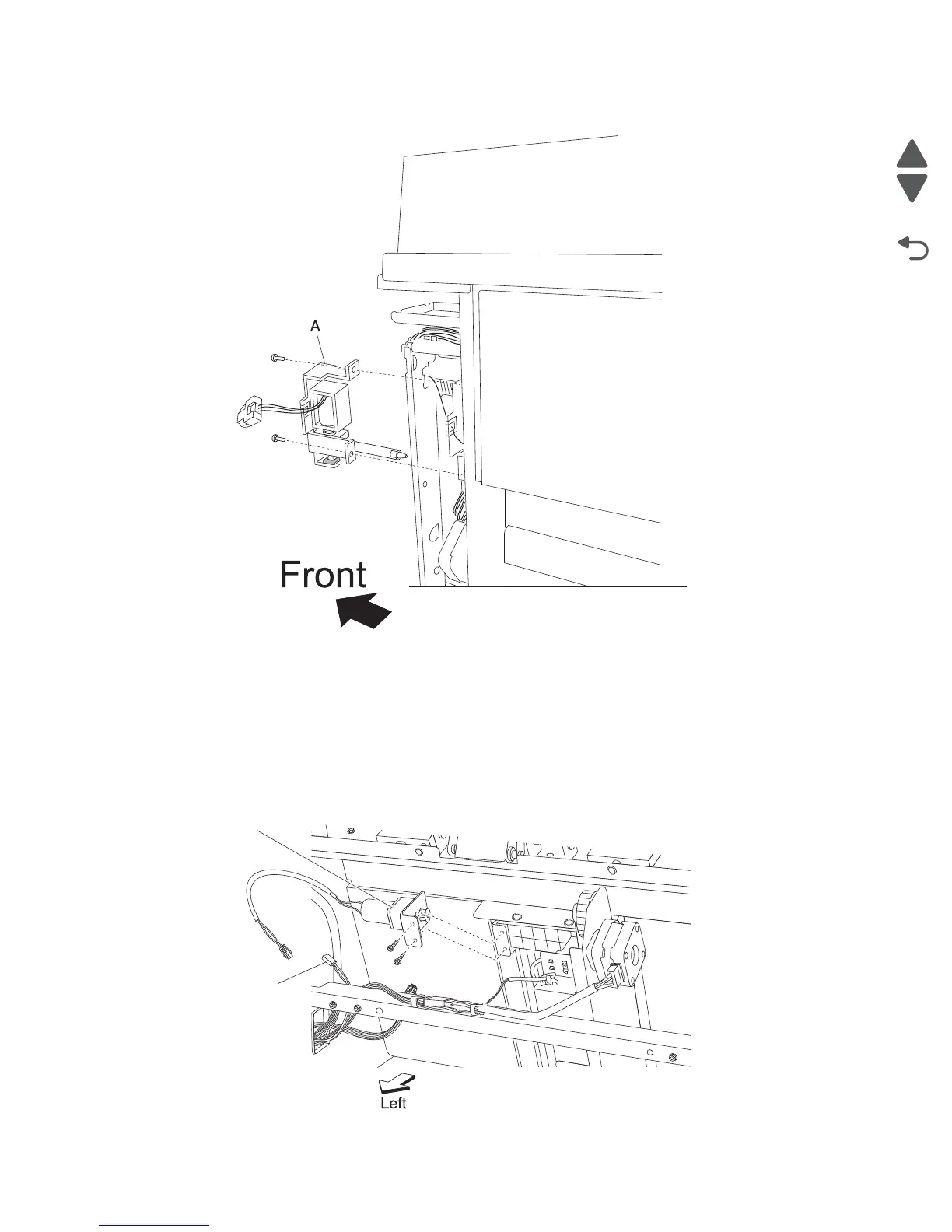

4. Remove the two screws securing the booklet end guide drive motor (A) from the compiler frame.
5. Remove the booklet end guide drive motor (A).
Connector
A
