Lexmark C950 - Assembly 19: Media Feed 1

7-20 Service Manual
5058-030
Go Back
Previous
Next

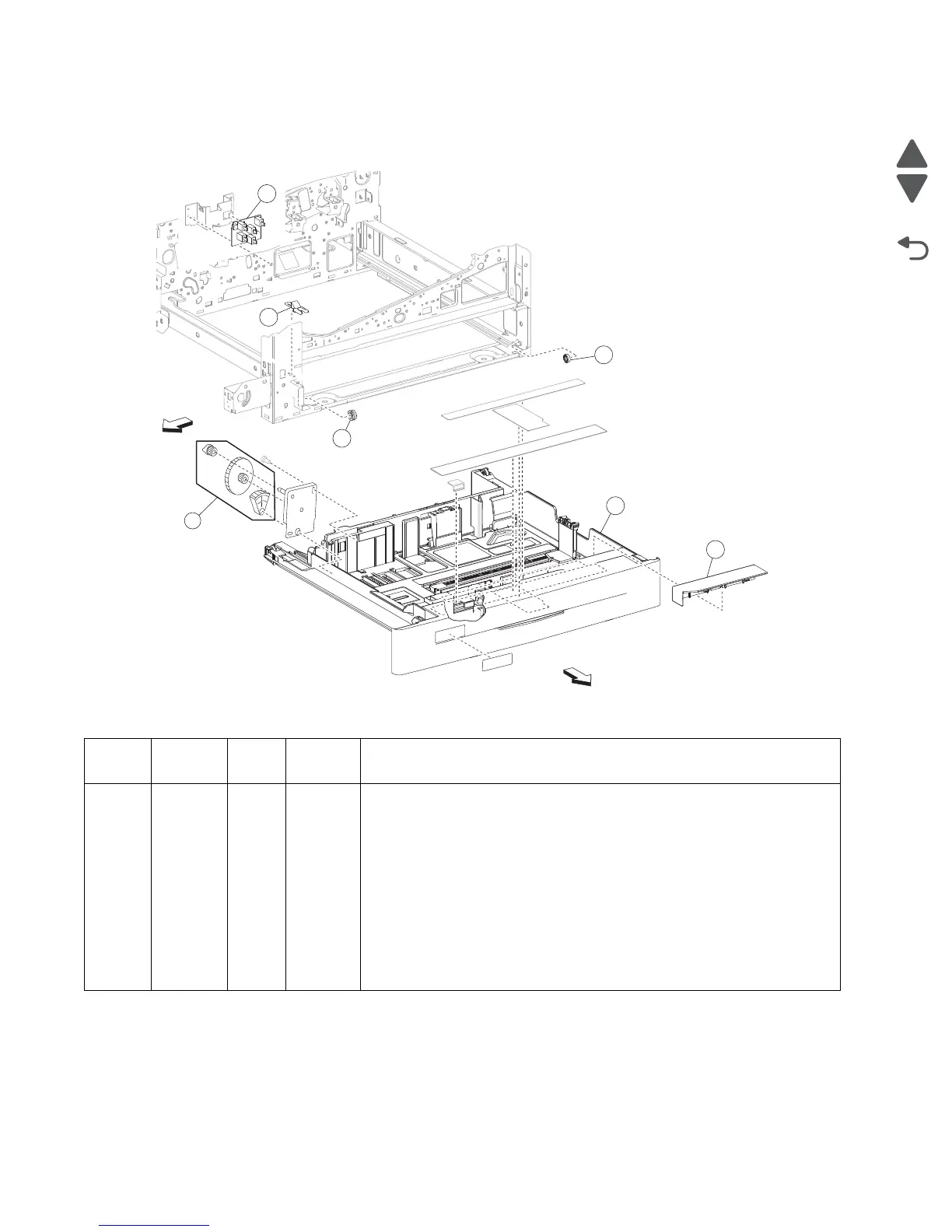

Assembly 19: Media feed 1
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
19-1 40X6653 11Media tray right roller
2 40X6654 11Printer media tray # 1
3 40X6655 11Media tray compartment cover
4 40X0580 23Media tray lift gear kit includes:
• Tray lift coupling gear 13T
• Tray lift gear 13/60T
• Tray lift sector gear 12T
5 40X6652 11Media tray left roller
6 40X6651 11Media tray stop
7 40X7533 61Media size switch PCB
1
5
6
7
Front
Left
3
2
4
