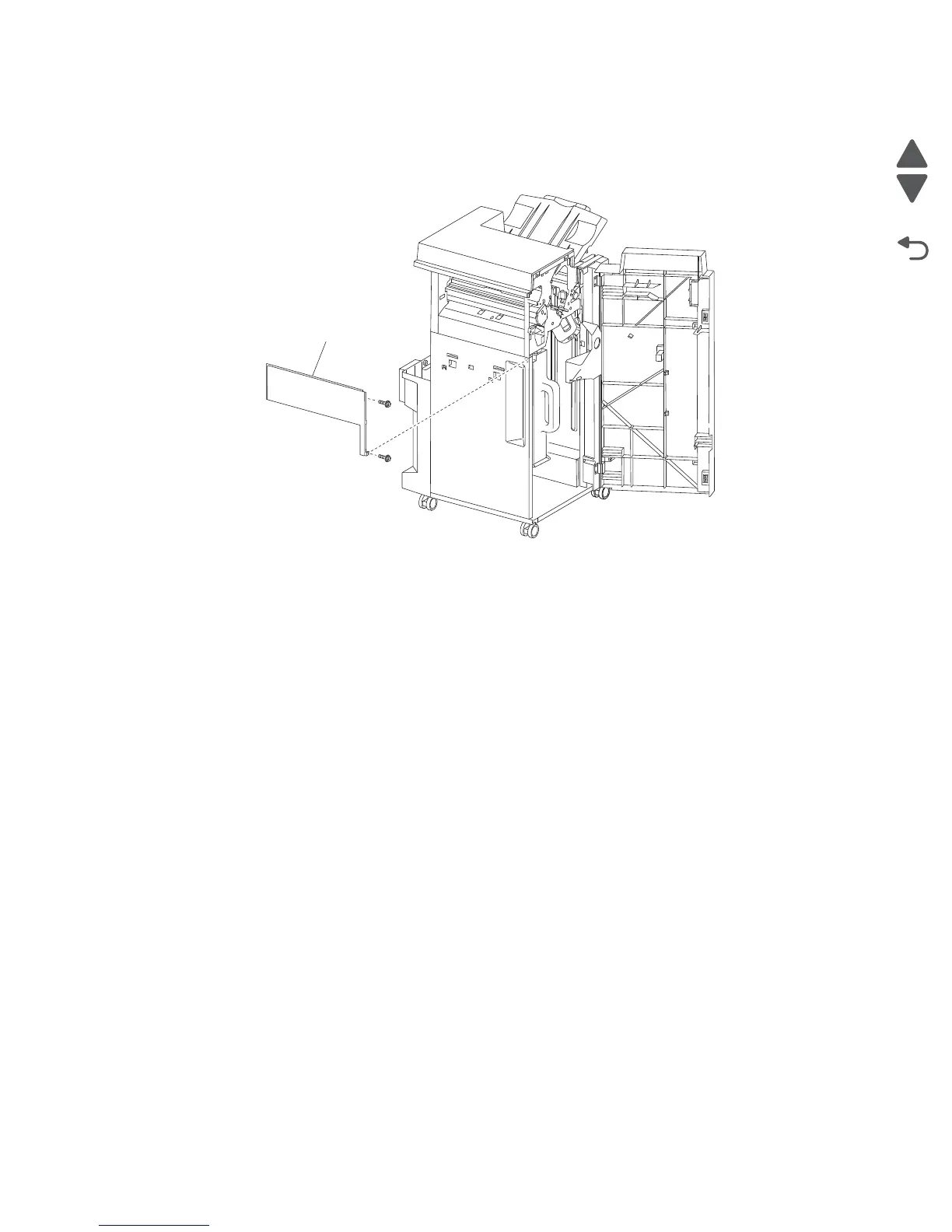

Left upper cover removal
1. Open the finisher front door assembly.
2. Remove the two screws securing the left upper cover (A).
3. Remove the left upper cover (A).
Lower media exit roll assembly removal
1. Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-276.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
4. Remove upper media bin vertical cover. See “Right eject cover removal” on page 4-310.
5. Remove the rear lower cover. See “Upper media bin front cover removal” on page 4-353.
6. Remove the stapler unit frame. See “Stapler unit frame removal” on page 4-342.
7. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
8. Remove the upper media bin vertical cover. See “Right eject cover removal” on page 4-310.
9. Remove the stapler unit frame. See “Stapler unit frame removal” on page 4-342.
10. Remove the media eject clamp motor assembly. See “Clamp drive motor removal” on page 4-268.
11. Remove the media eject unit assembly. See “Media eject unit assembly removal” on page 4-299.
12. Remove the media compiler unit assembly. See “Media compiler unit assembly removal” on
page 4-294.
13. Remove the media eject clutch. See “Media eject clamp clutch removal” on page 4-297.
14. Remove the media eject motor assembly. See “Media eject motor assembly removal” on page 4-298.
15. Remove the media eject shaft assembly. See “Eject roll shaft removal” on page 4-270.
16. Remove the main paddle shaft assembly. See “Paddle shaft removal” on page 4-303.
17. Loosen the two screws securing the belt tensioner bracket (A) to the finisher, and move the bracket down
in the direction of the arrow.
A
