Lexmark C950 - 1 St Transfer Retract Clutch Assembly Removal

4-22 Service Manual
5058-030
Go Back
Previous
Next

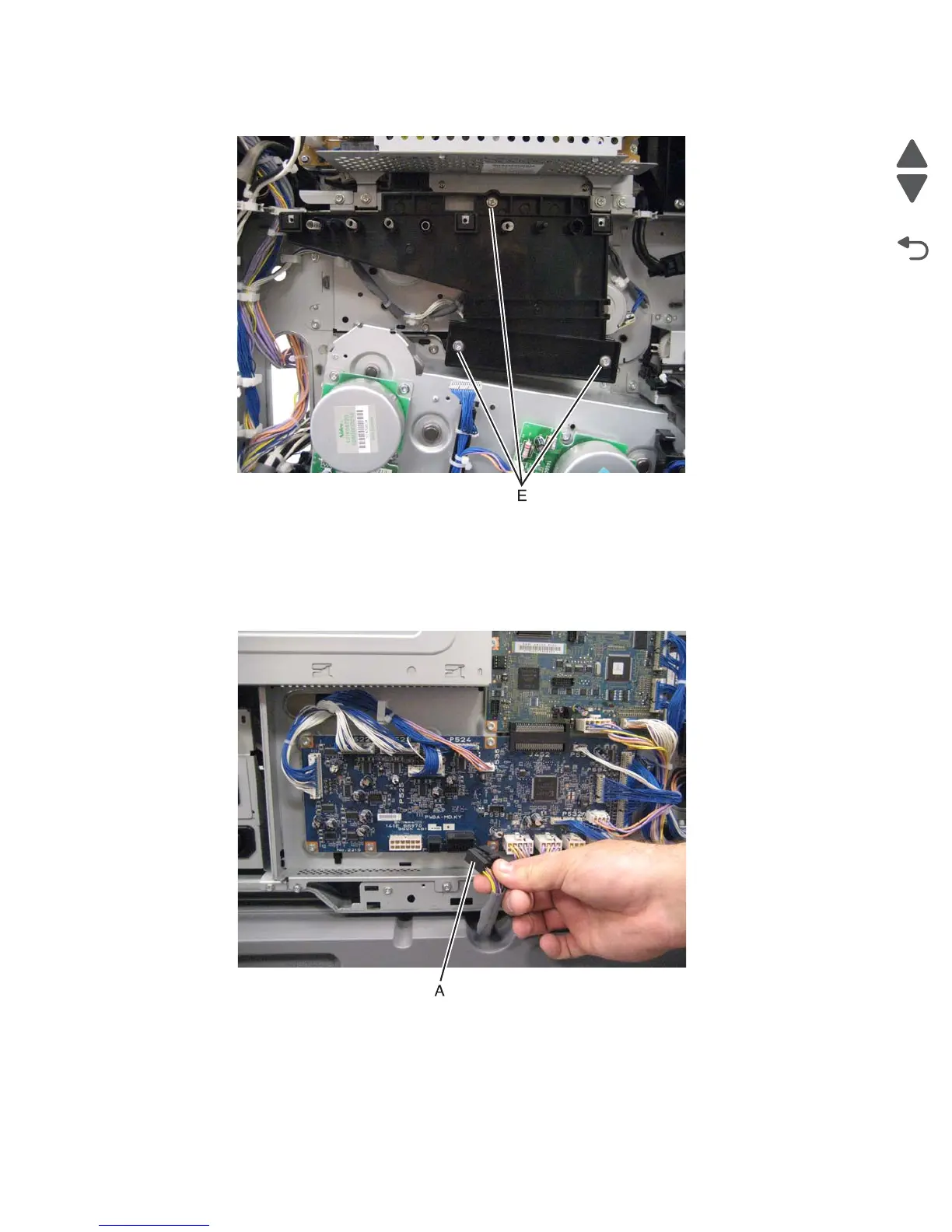

9. Remove the three screws (E) securing the 1st transfer conductor housing to the machine.
10. Remove the 1st transfer conductor housing.
1st transfer retract clutch assembly removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.
2. Disconnect the input option cable (A).
