MPF top cover removal
1. Remove the left rear lower cover. See “Left rear lower cover removal” on page 4-6.
2. Remove the MPF tray feeder. See “MPF tray feeder removal” on page 4-122. (Optional.)

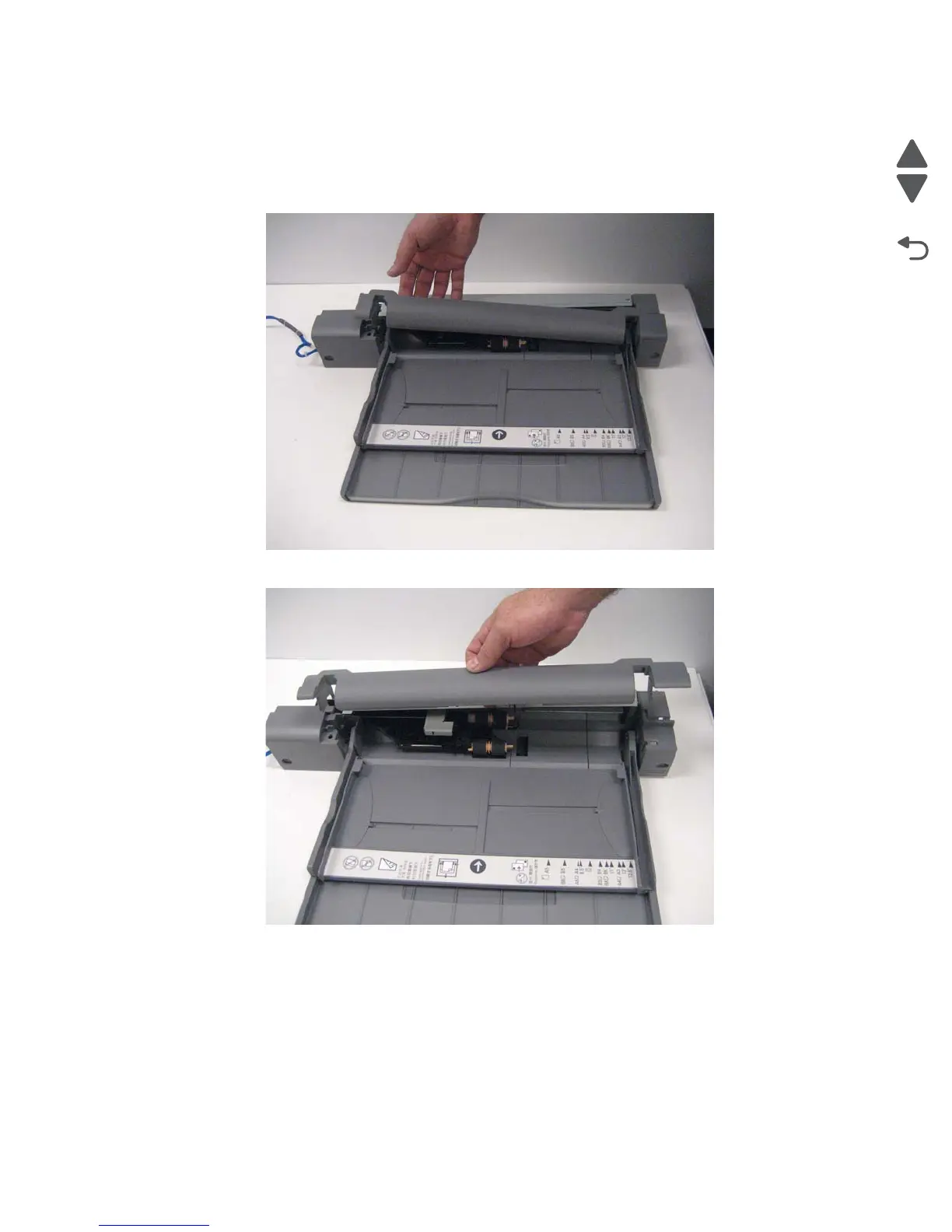

3. Gently detach the MPF top cover from the MPF tray assembly.
4. Remove the MPF top cover.
