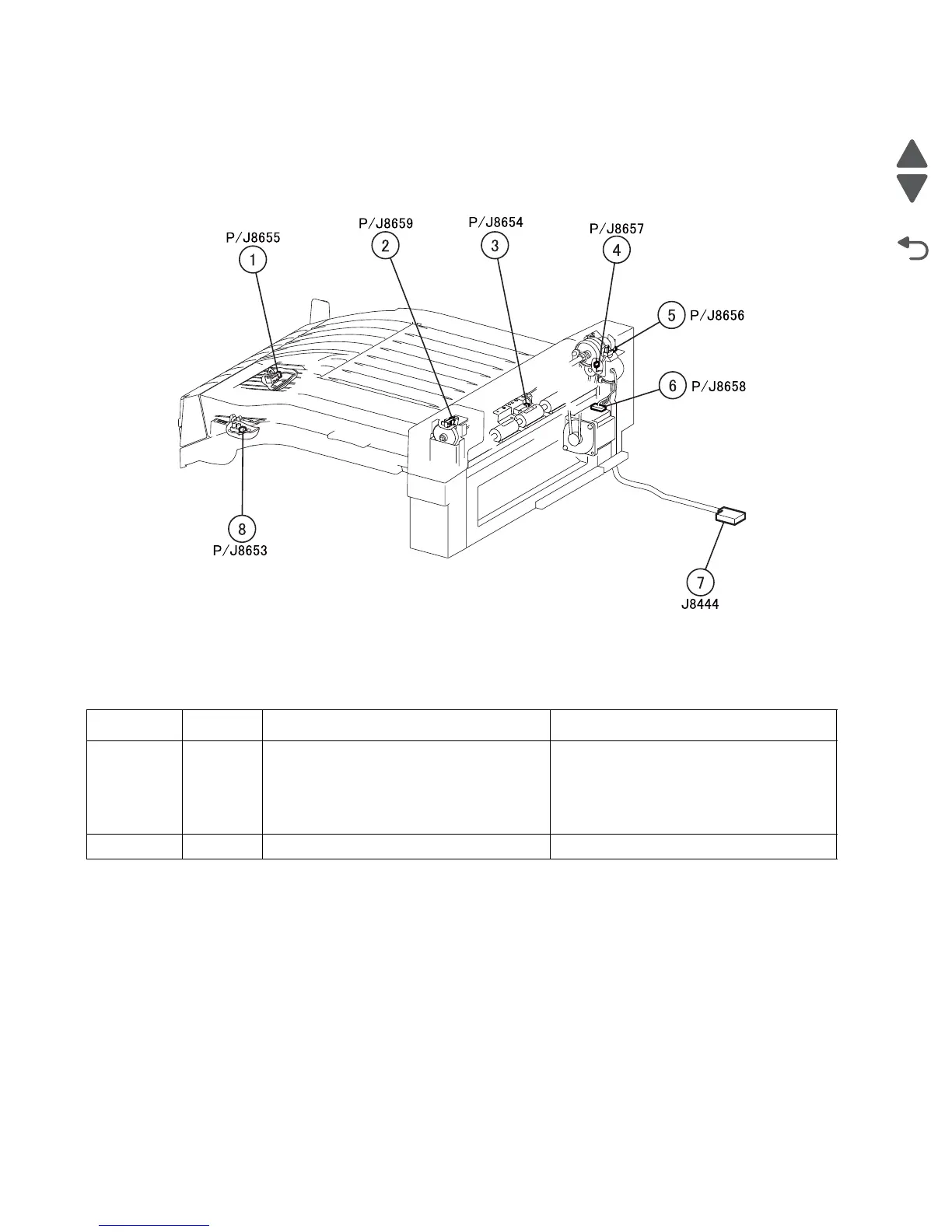

Finisher—bridge
Plug/Jack Callout Plug/jack description Connects to
J8444 7 Bridge PCBA • Bridge drive motor
• Sensor (bridge media entrance)
• Bridge decurler cam clutch
• Sensor (bridge top door interlock)
• Sensor (decurler cam HP)
P/J8653 8 Sensor (bridge top door interlock) Bridge PCBA
