Lexmark C950 - Developer HVPS PCBA Removal

Repair information 4-69
5058-030
Go Back
Previous
Next
Developer HVPS PCBA removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.

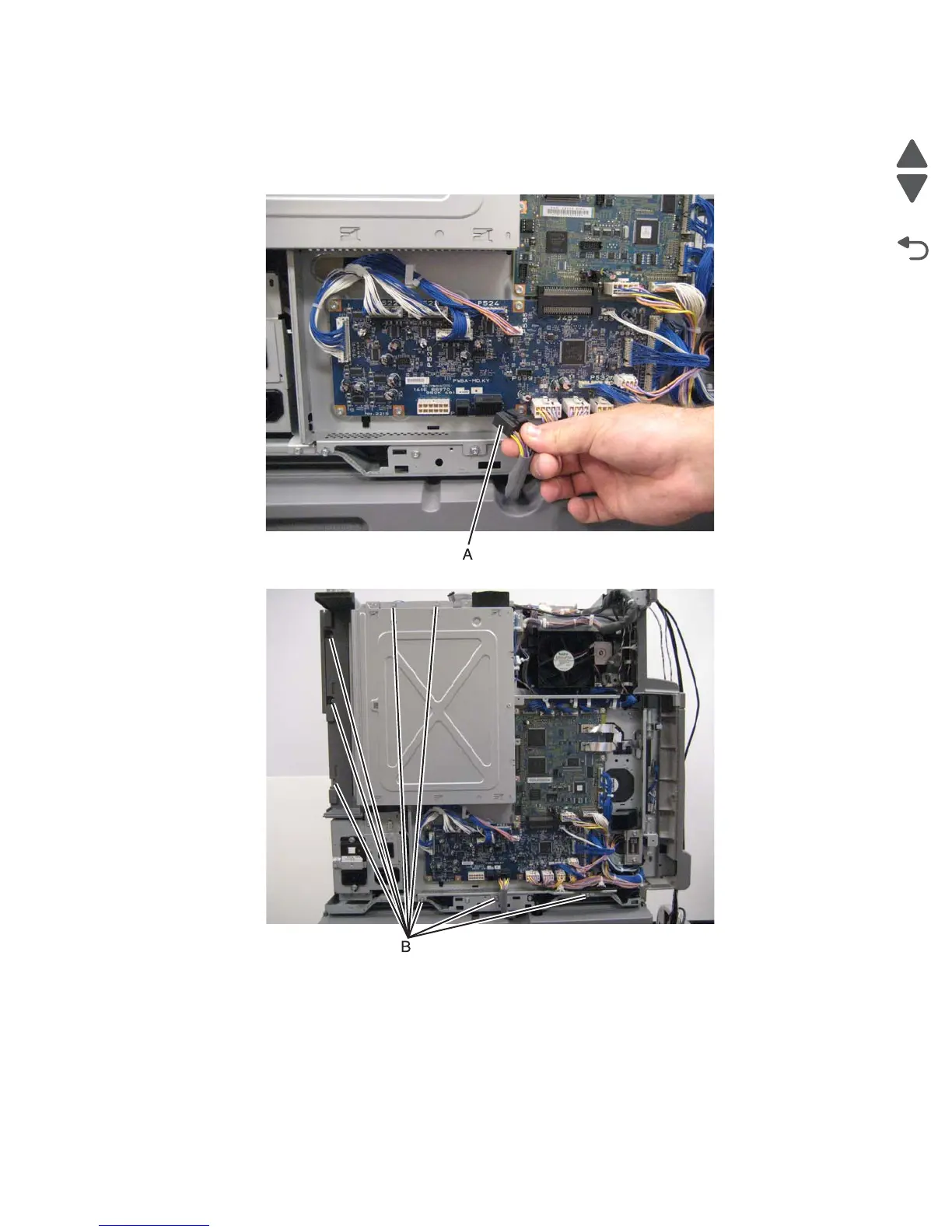

2. Disconnect the input option cable (A).
3. Remove the eight screws (B) securing the PCBA door to the machine.
