Repair information 4-137
5058-030

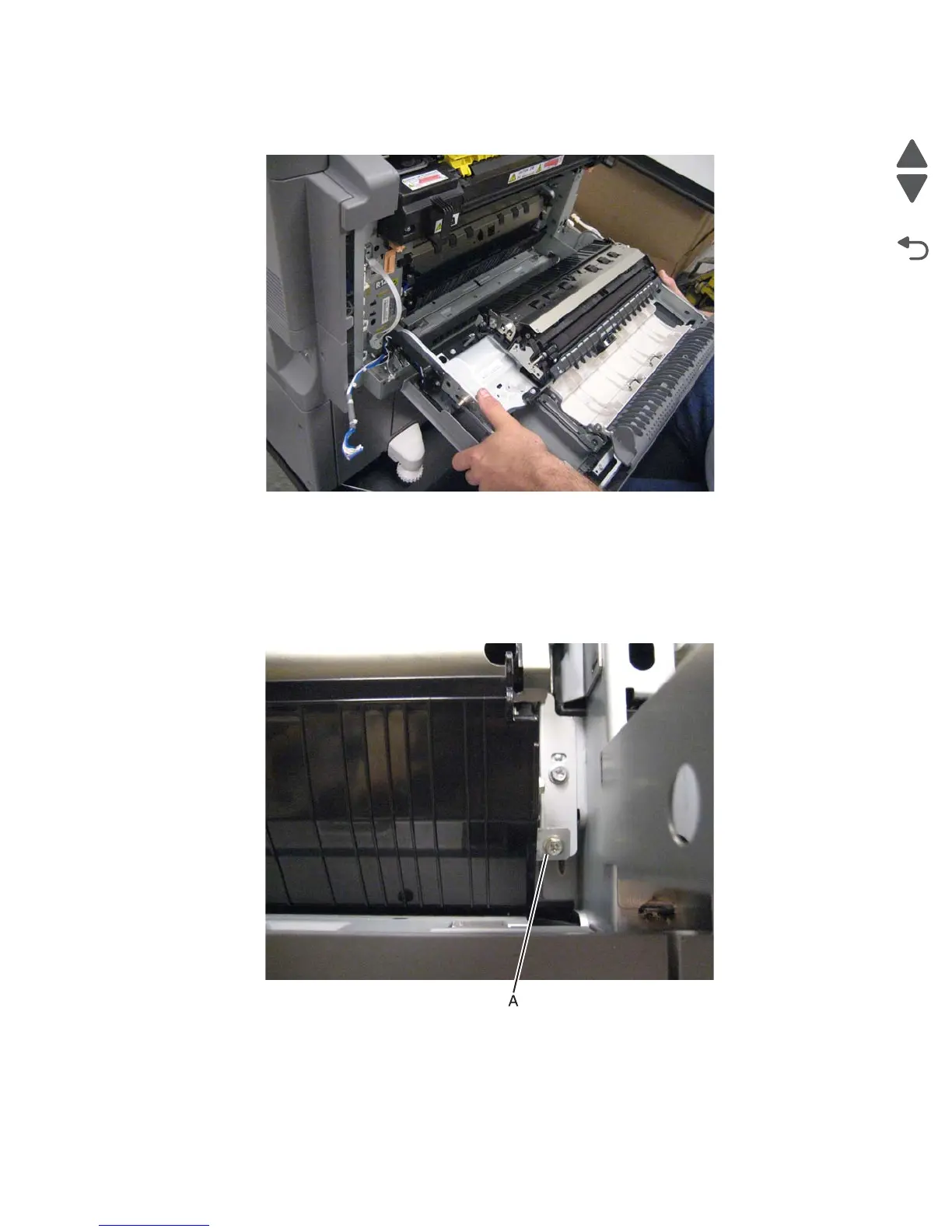

8. Lift the printer left duplex door assembly straight up to detach it from the machine.
9. Remove the printer left duplex door assembly.
Printer media turn guide removal
1. Remove the left rear lower cover. See “Left rear lower cover removal” on page 4-6.
2. Remove the MPF tray feeder. See “MPF tray feeder removal” on page 4-122.
3. Open the printer left duplex door.
4. Loosen the screw (A) on the front of the printer media turn guide.
