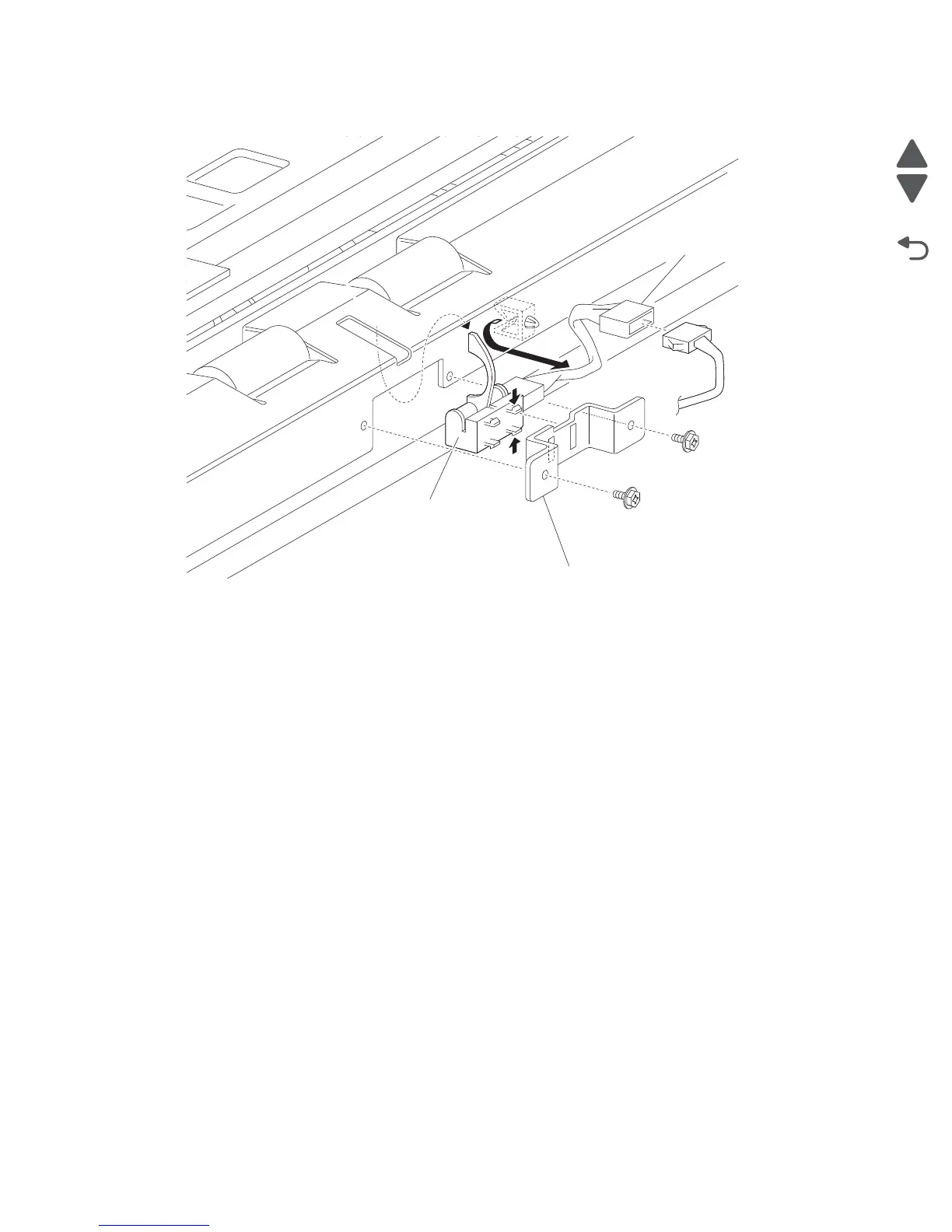

8. Remove the sensor (tray 5 feedout) (A).
HCF separation drive gear kit removal
1. Remove the HCF media tray assembly from the printer. See “HCF media tray assembly removal” on
page 4-366.
2. Remove the HCF feed unit. See “HCF feed unit removal” on page 4-362.
3. Remove the HCF feed lift motor. See “HCF feed lift motor removal” on page 4-360.
4. Remove the HCF lift feed gear bracket. See “HCF feed lift gear bracket removal” on page 4-360.
5. Remove the shaft (A) from the HCF lift feed gear bracket (B).
Note: Bearing (C) may become detached.
6. Use a prying tool to remove the e-clip securing the separation gear -19 tooth (D) to shaft (A).
7. Remove the separation gear - 19 tooth (D).
A
B
Connector
