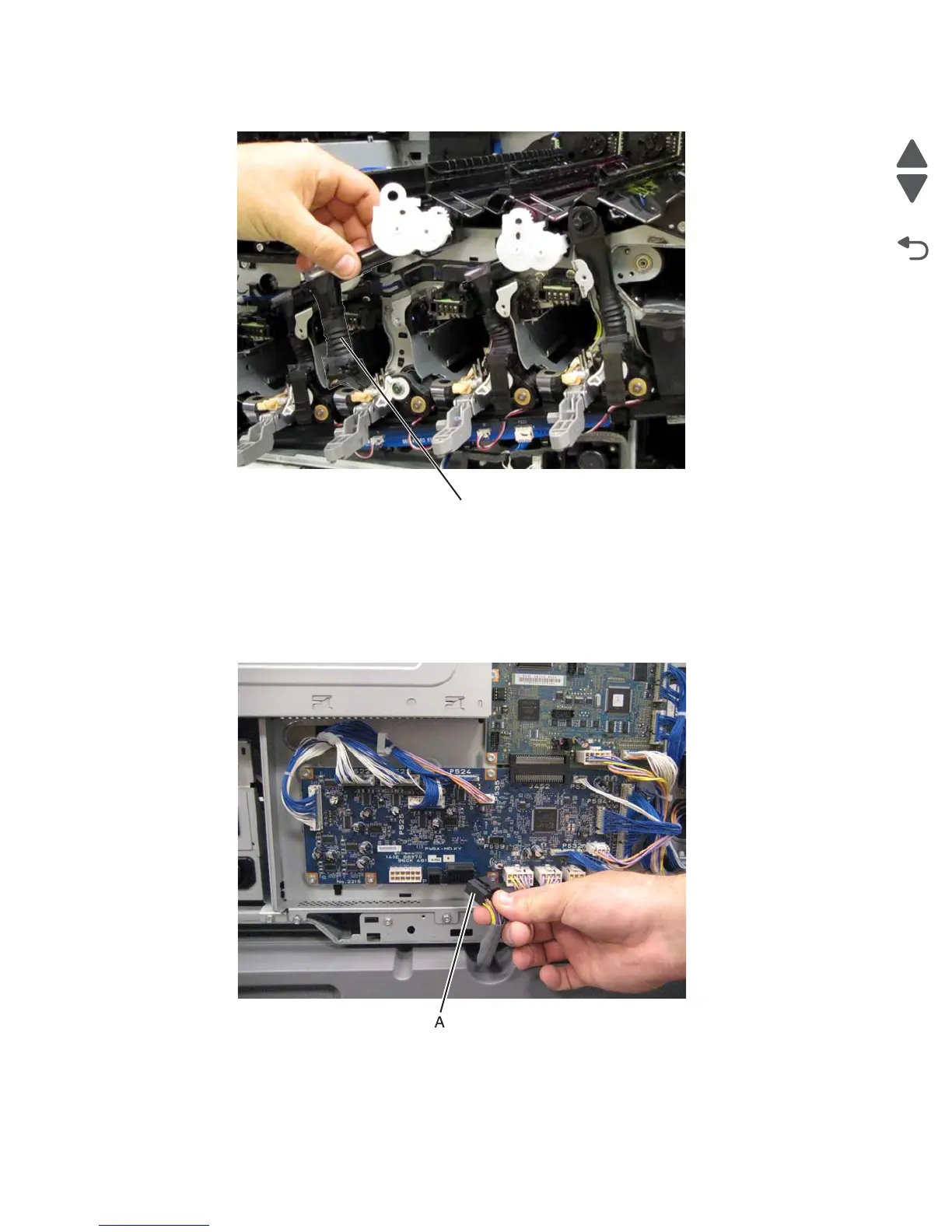

13. Remove the C toner auger.
Re-installation note: Ensure that the rubber sleeve (C) is attached properly to prevent toner spillage.
Charge roll HVPS cooling fan removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.
2. Disconnect the input option cable (A).
C
