Lexmark C950 - Lower Engine PCBA Removal

4-98 Service Manual
5058-030
Go Back
Previous
Next
Lower engine PCBA removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-16.

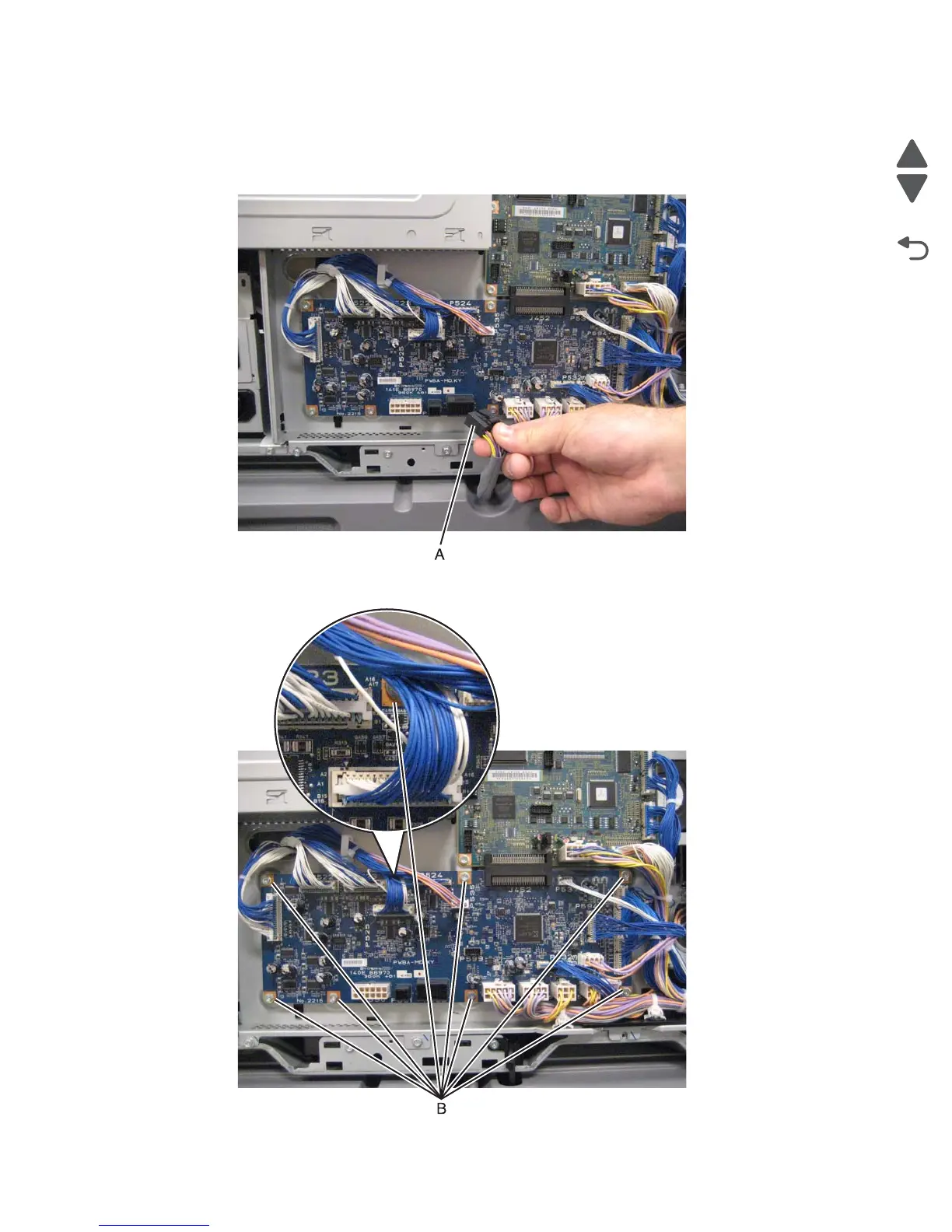

2. Disconnect the input option cable (A).
3. Disconnect all the cables from the lower engine PCBA.
4. Remove the eight screws (D).
