Lexmark C950 - Main Power;Front Cover Interlock Switch

Connector locations 5-5
5058-030
Go Back
Previous
Next

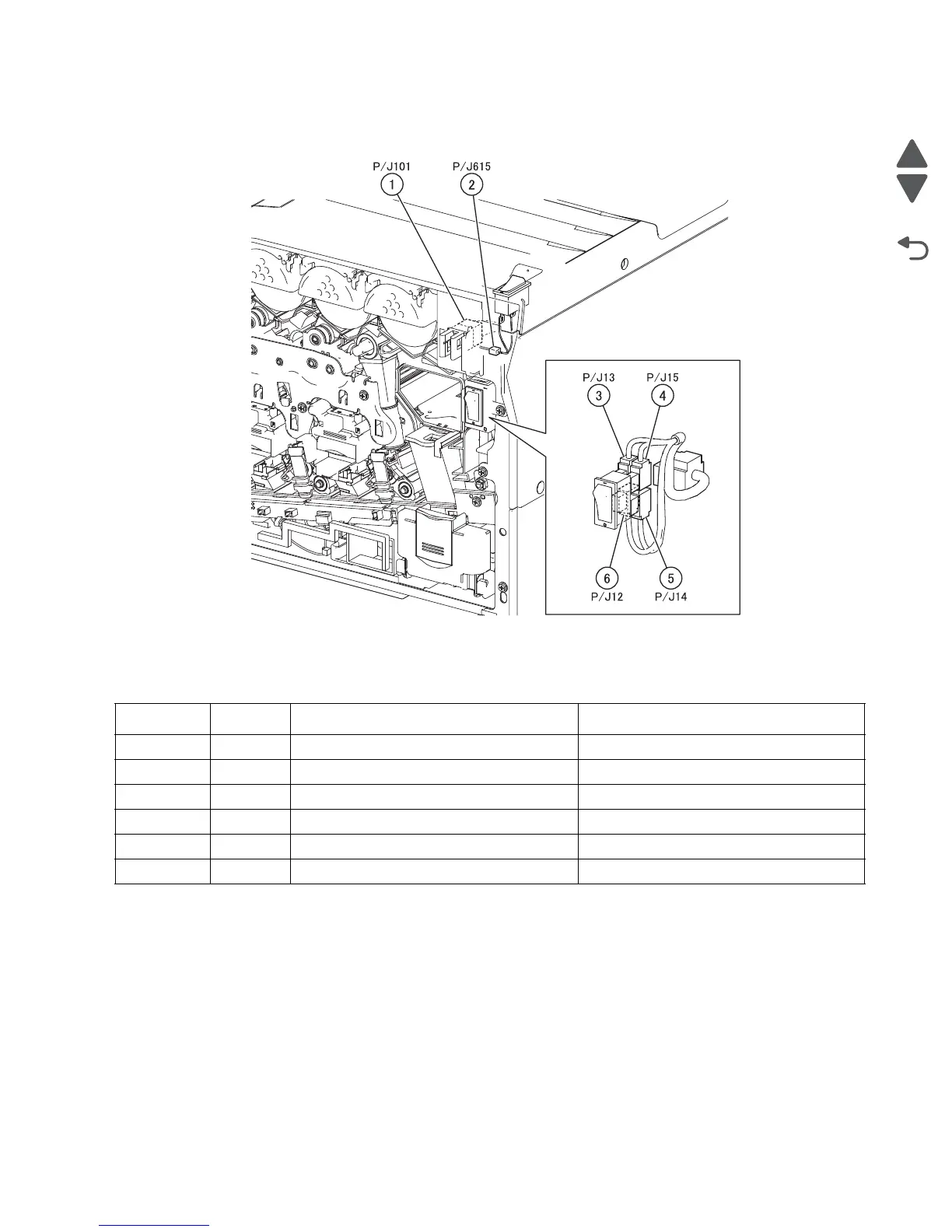

Main Power/Front Cover Interlock Switch
.
Plug/Jack Callout Plug/jack description Connects to
P/J12 6 Main power switch LVPS PCBA
P/J13 3 Main power switch LVPS PCBA
P/J14 5 Main power switch LVPS PCBA
P/J15 4 Main power switch LVPS PCBA
P/J101 1 Sensor (printer right front door interlock) Lower engine PCBA
P/J615 2 Main power switch Upper engine PCBA
