Lexmark C950 - Booklet Diverter Gate Removal

Repair information 4-251
5058-030
Go Back
Previous
Next

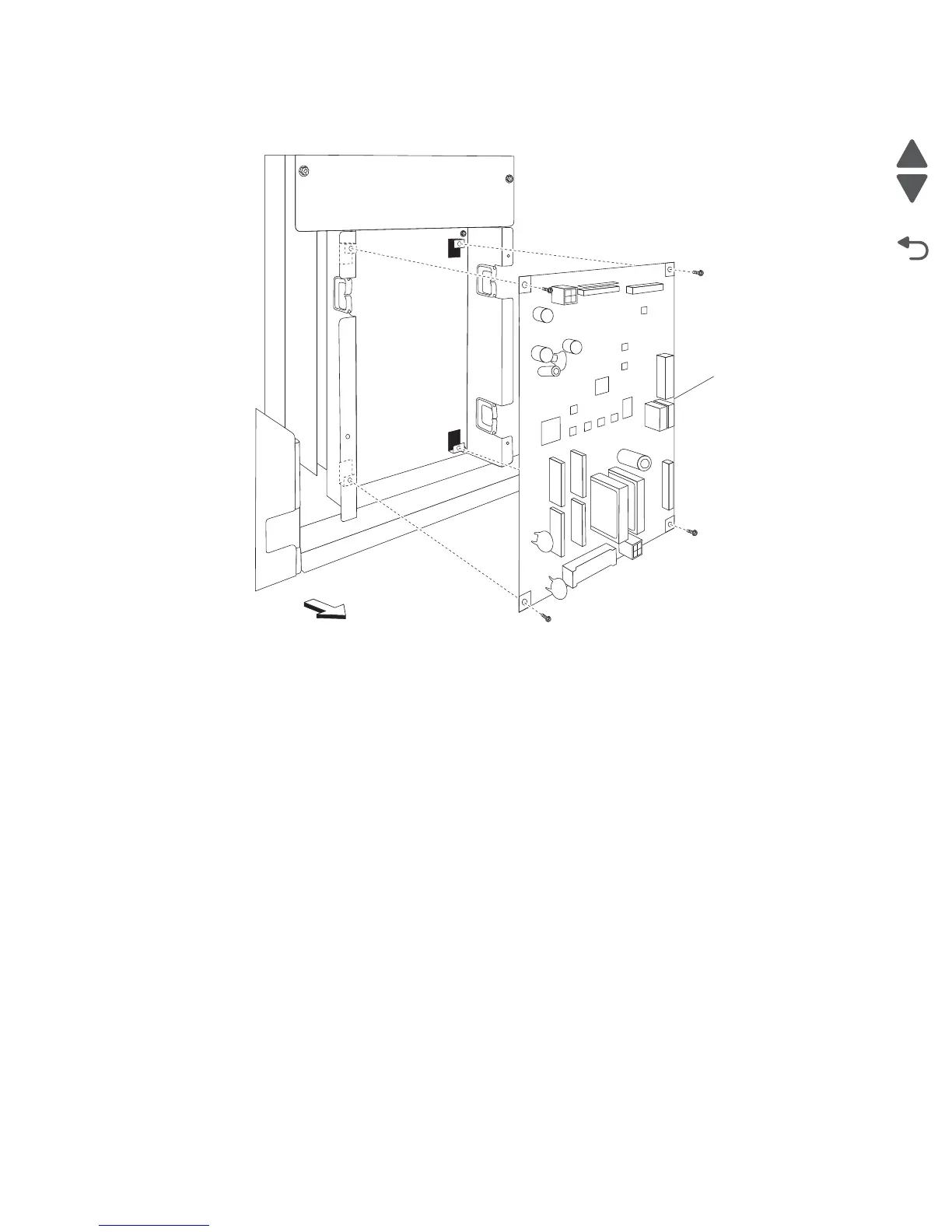

6. Remove the four screws securing the booklet controller card assembly (A).
7. Remove the booklet controller card assembly (A).
Booklet diverter gate removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
2. Remove the two screws securing the booklet diverter gate (A) to the machine.
3. Remove the booklet diverter gate (A).
4. Release the harness from the clamp.
A
Rear
