Repair information 4-293
5058-030

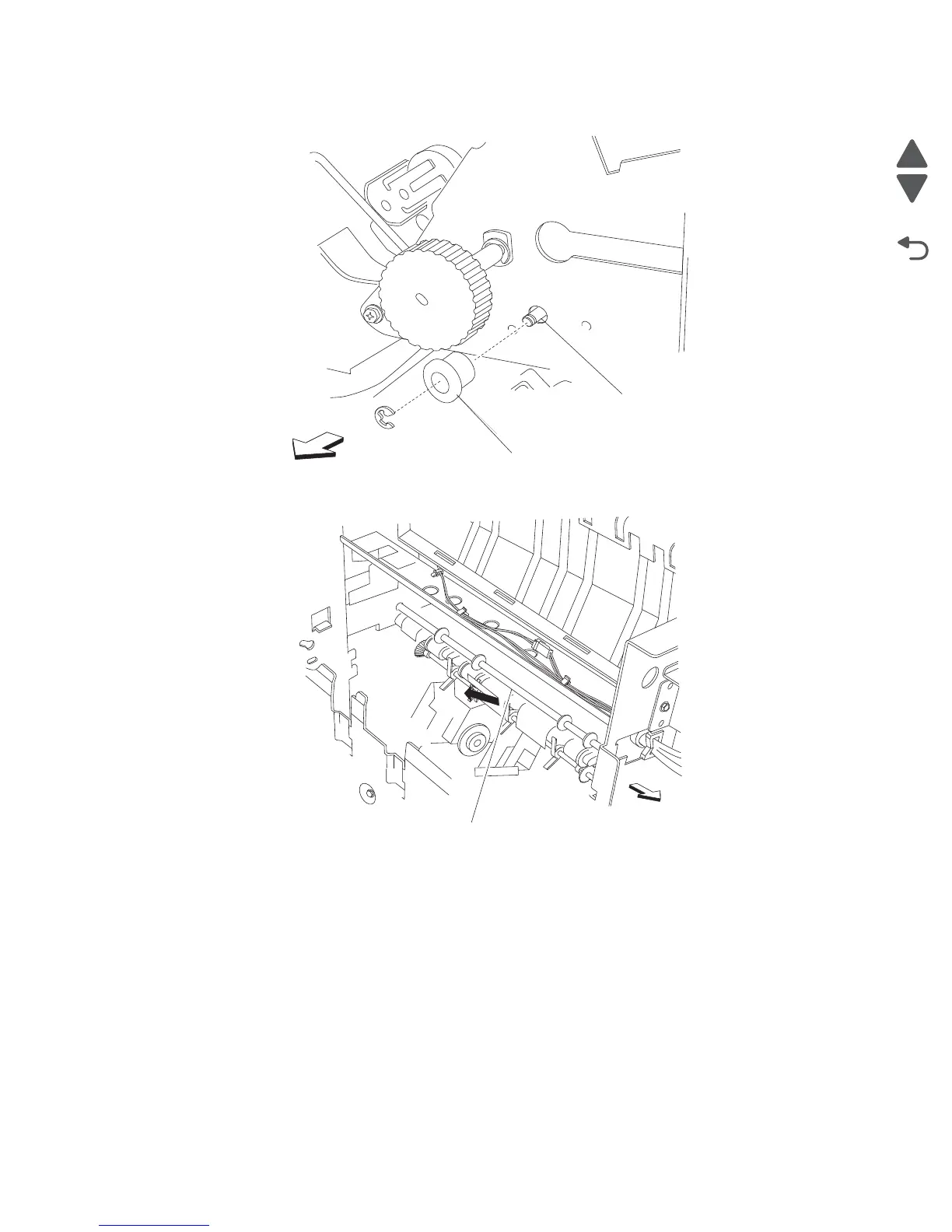

23. Remove the 6 mm bushing (H).
24. Move the lower media exit roll assembly (F) towards the rear and outward, as shown.
25. Remove the lower media exit roll assembly (F).
Lower pinch guide assembly removal
1. Open the finisher front door assembly.
2. Open the lower pinch guide assembly (A) by lifting it upward.
3. Remove the screw securing the lower pinch guide assembly (A) to the finisher.
