Lexmark C950 - Sensor (Bridge Media Exit) Removal

Repair information 4-241
5058-030
Go Back
Previous
Next
4. Remove the bracket from the machine.

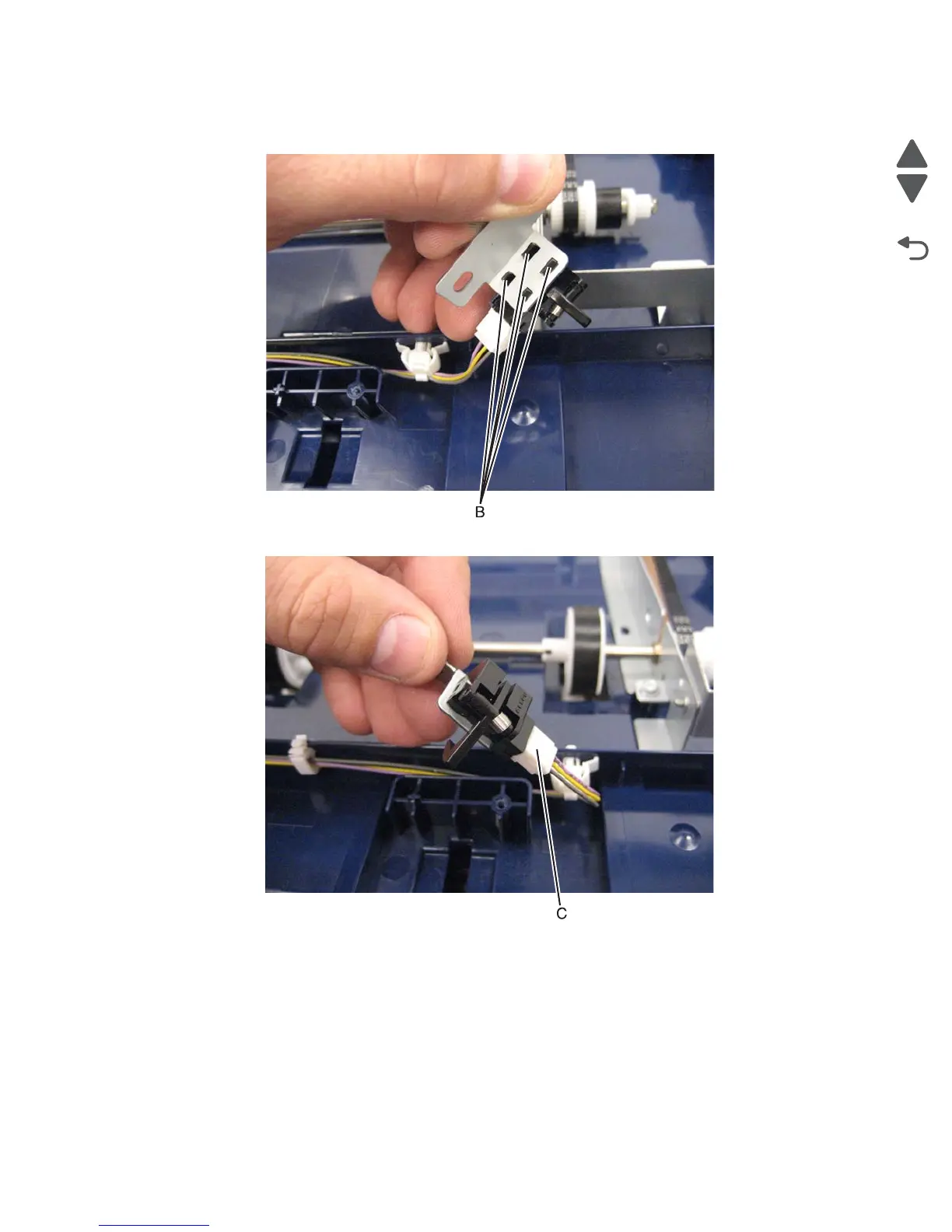

5. Release the hooks (B).
6. Disconnect the cable (C) from the sensor (bridge media entrance).
7. Remove the sensor (bridge media entrance).
Sensor (bridge media exit) removal
1. Remove the bridge unit assembly. See “Bridge unit assembly removal” on page 4-232.
2. Remove the bridge de-curler top cover. See “Bridge decurler top cover removal” on page 4-229.
