High capacity feeder (HCF) removals

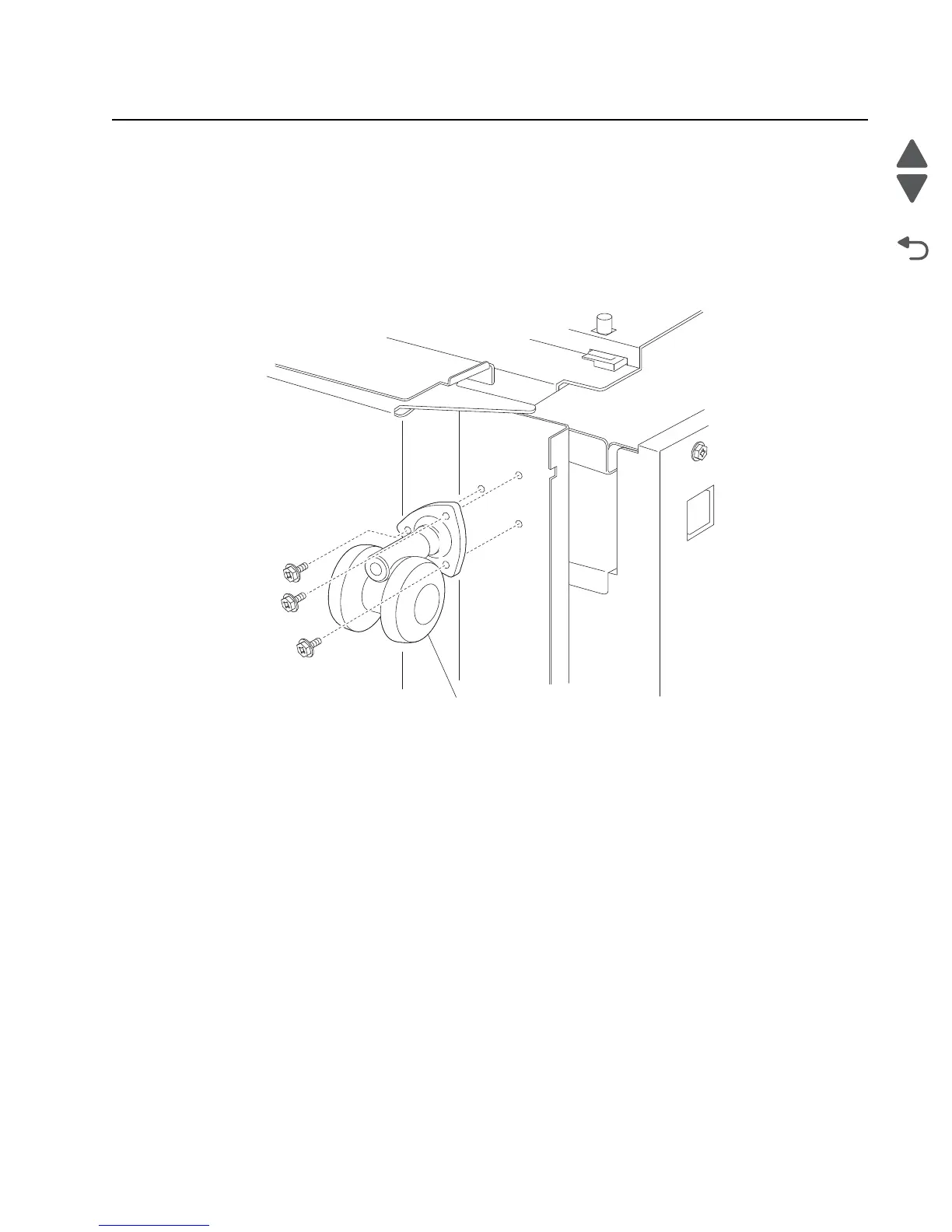

HCF caster removal
1. Remove the HCF unit from the printer.
2. Place the machine so the HCF left cover faces down.
3. Remove the three screws securing the HCF caster (A) to the unit.
4. Remove the HCF caster (A).
HCF controller card PCBA removal
1. Remove the HCF rear cover. See “HCF rear cover removal” on page 4-371.
2. Disconnect all connectors from the HCF controller card PCBA (A).
3. Remove the four screws securing the HCF controller card PCBA (A) to the unit.
A
