Lexmark C950 - Booklet Media Pinch Roll Assembly Removal

4-258 Service Manual
5058-030
Go Back
Previous
Next

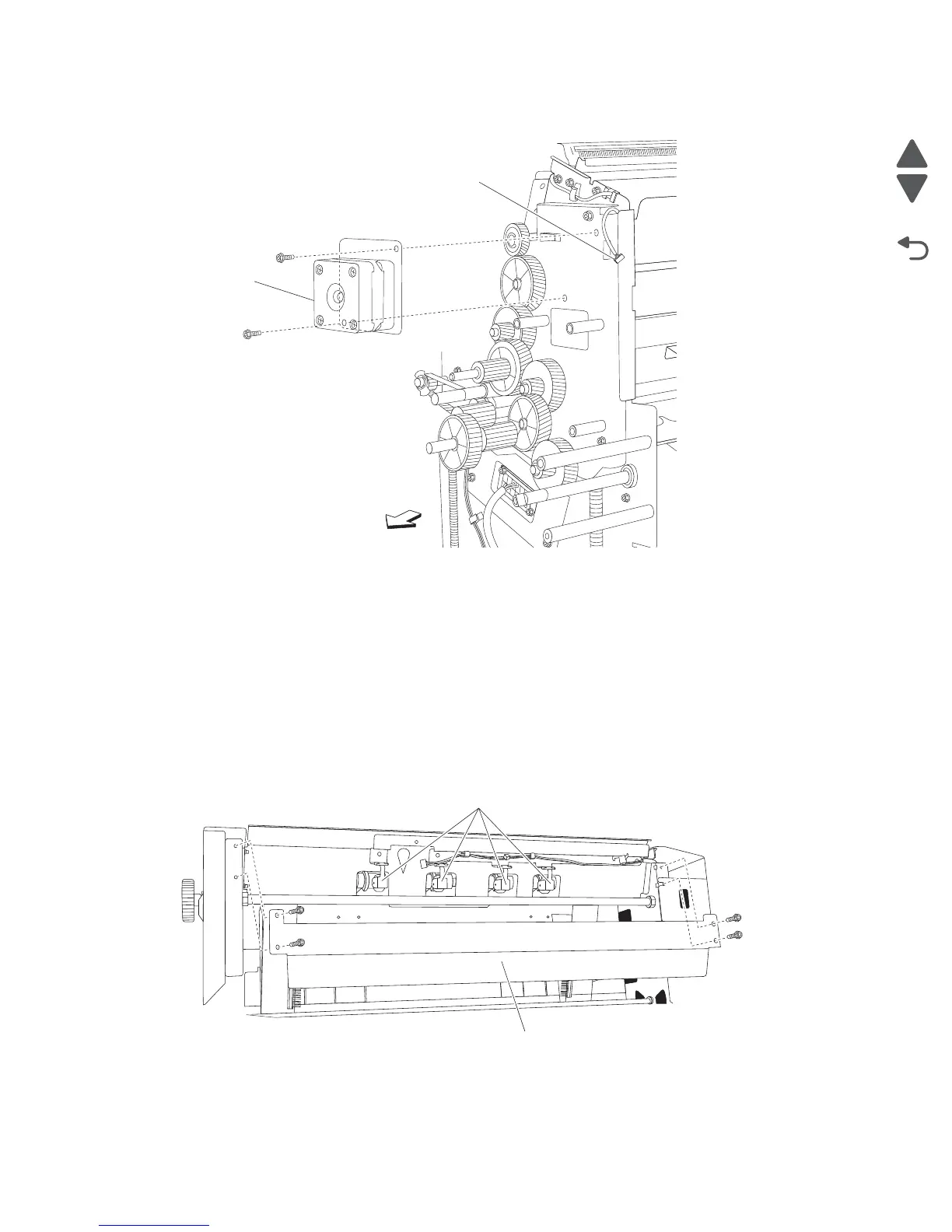

6. Remove the booklet media entrance drive motor (A).
Booklet media pinch roll assembly removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the Sensor (booklet unit media entrance). See “High capacity feeder (HCF) removals” on
page 4-359.
3. Remove the four screws securing the frame X from the booklet unit assembly.
4. Release the cable harness from the frame X.
5. Remove the booklet unit front door assembly.
6. Remove the four screws securing the booklet media pinch roll assembly (A) from the booklet unit
assembly.
7. Remove the booklet media pinch roll assembly (A).
A
Connector
Rear
A
B
