Lexmark C950 - Booklet Unit Assembly Left Cover Removal

4-262 Service Manual
5058-030
Go Back
Previous
Next
6. Remove the booklet stapler unit assembly (B).

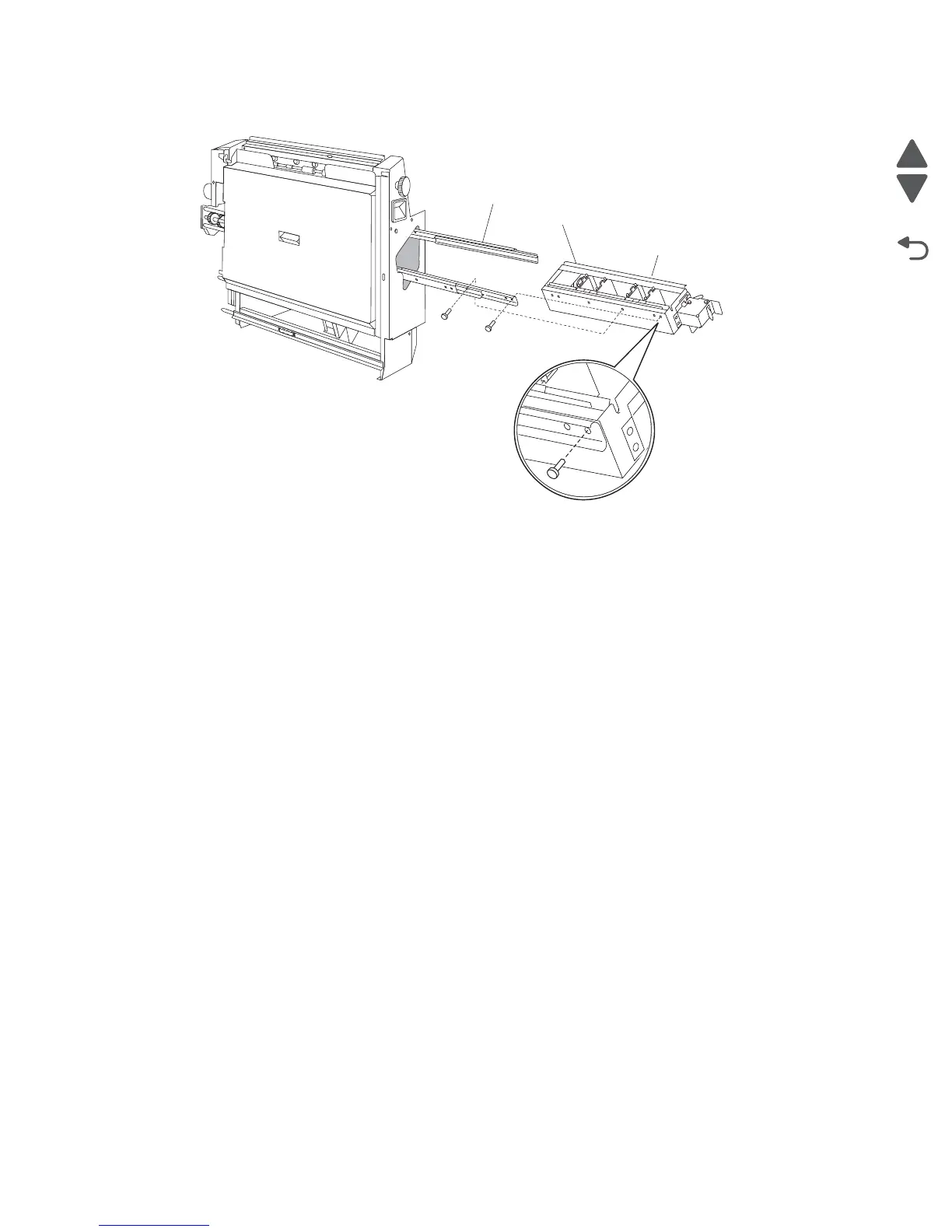

Booklet unit assembly left cover removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the top screws securing the left cover to the booklet unit assembly.
Clear
plastic
tab
B
A
