Connector locations 5-35

5058-030

Go Back

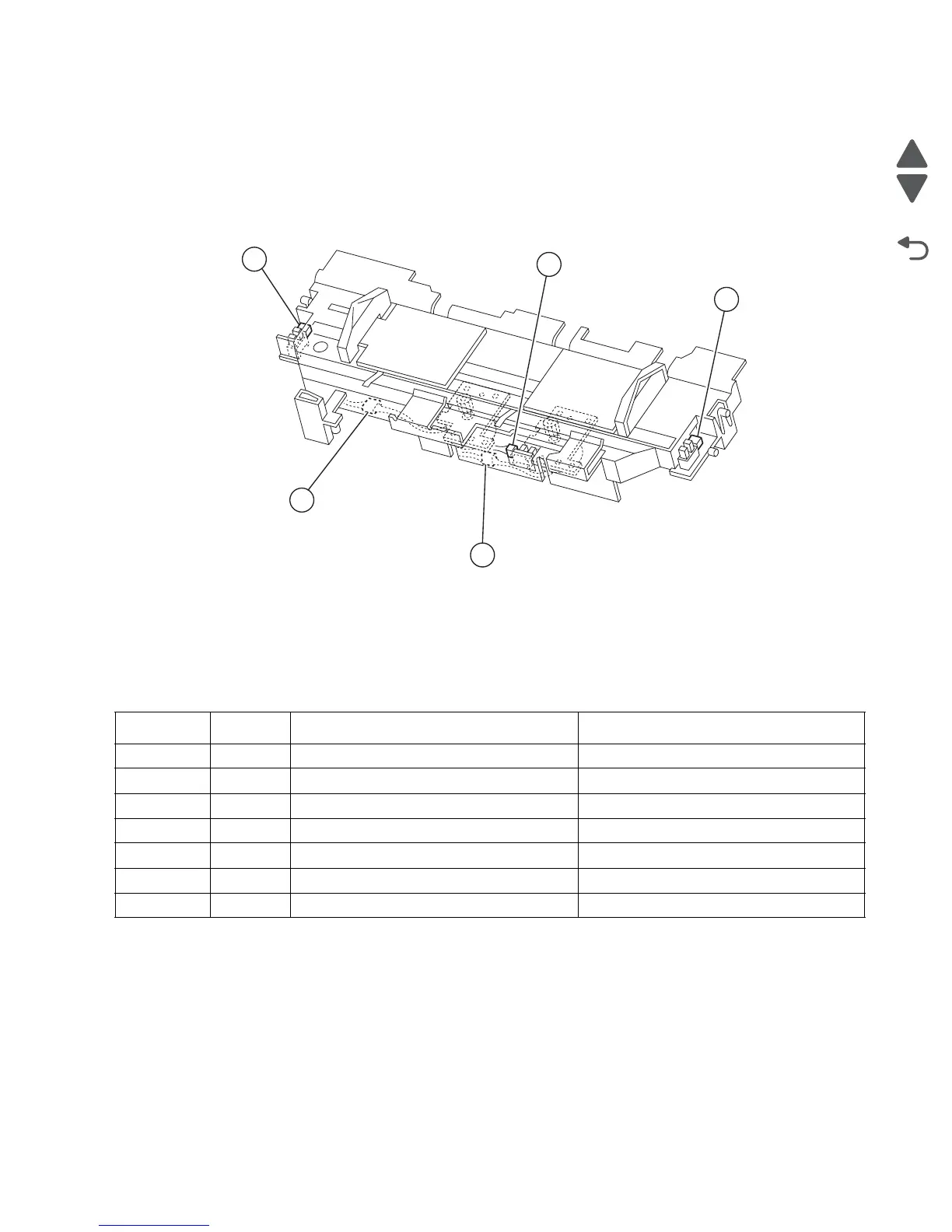

Finisher—media compiler guide

Plug/Jack Callout Plug/jack description Connects to

P/J8359 2 Media compiler guide Finisher controller PCBA

P/J8360 3 Media compiler guide Finisher controller PCBA

P/J8361 1 Media compiler guide Finisher controller PCBA

P/J8362A 5 Media compiler guide Finisher controller PCBA

P/J8362B 5 Media compiler guide Finisher controller PCBA

P/J8363A 4 Media compiler guide Finisher controller PCBA

P/J8363B 4 Media compiler guide Finisher controller PCBA

P/ J8361

P/ J8359

P/ J8360

P/ J8362A

P/ J8362B

P/ J8363A

P/ J8363B

Front
