Lexmark C950 - Finisher Left Carriage Belt Assembly Removal

Repair information 4-277
5058-030
Go Back
Previous
Next

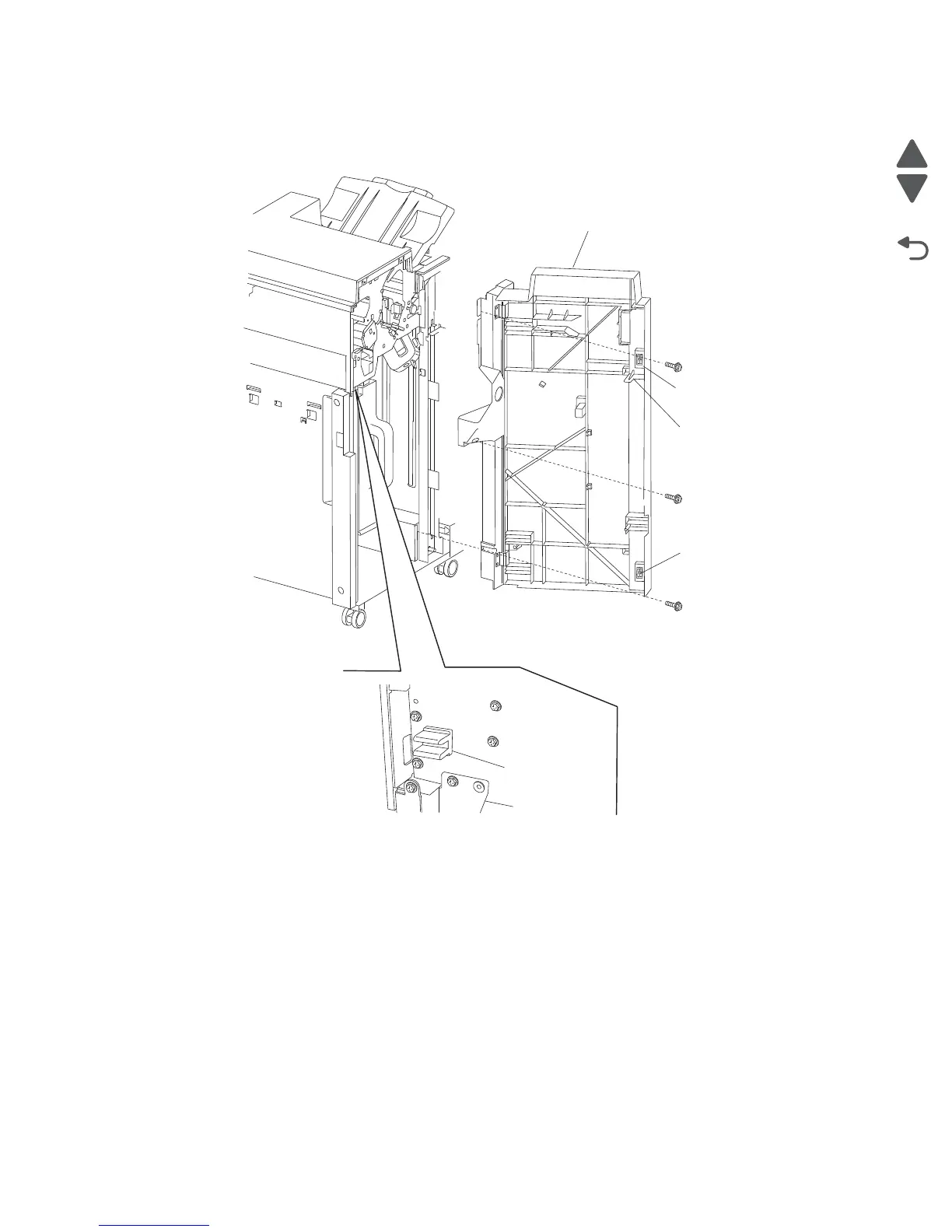

3. Remove the finisher front door assembly.
Reinstallation note: Make sure the actuator molded in the finisher front door assembly properly engages the
switch (finisher front door interlock) (B). The two magnetic catches (C) should properly engage the finisher.
Finisher left carriage belt assembly removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
2. Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-276.
3. Move the slip clutch gear 24T (A) toward the rear to disengage the stacker bin (B).
A
C
C
B
B
Actuator
