Lexmark C950 Service Manual

5-4 Service Manual
5058-030
Go Back
Previous
Next

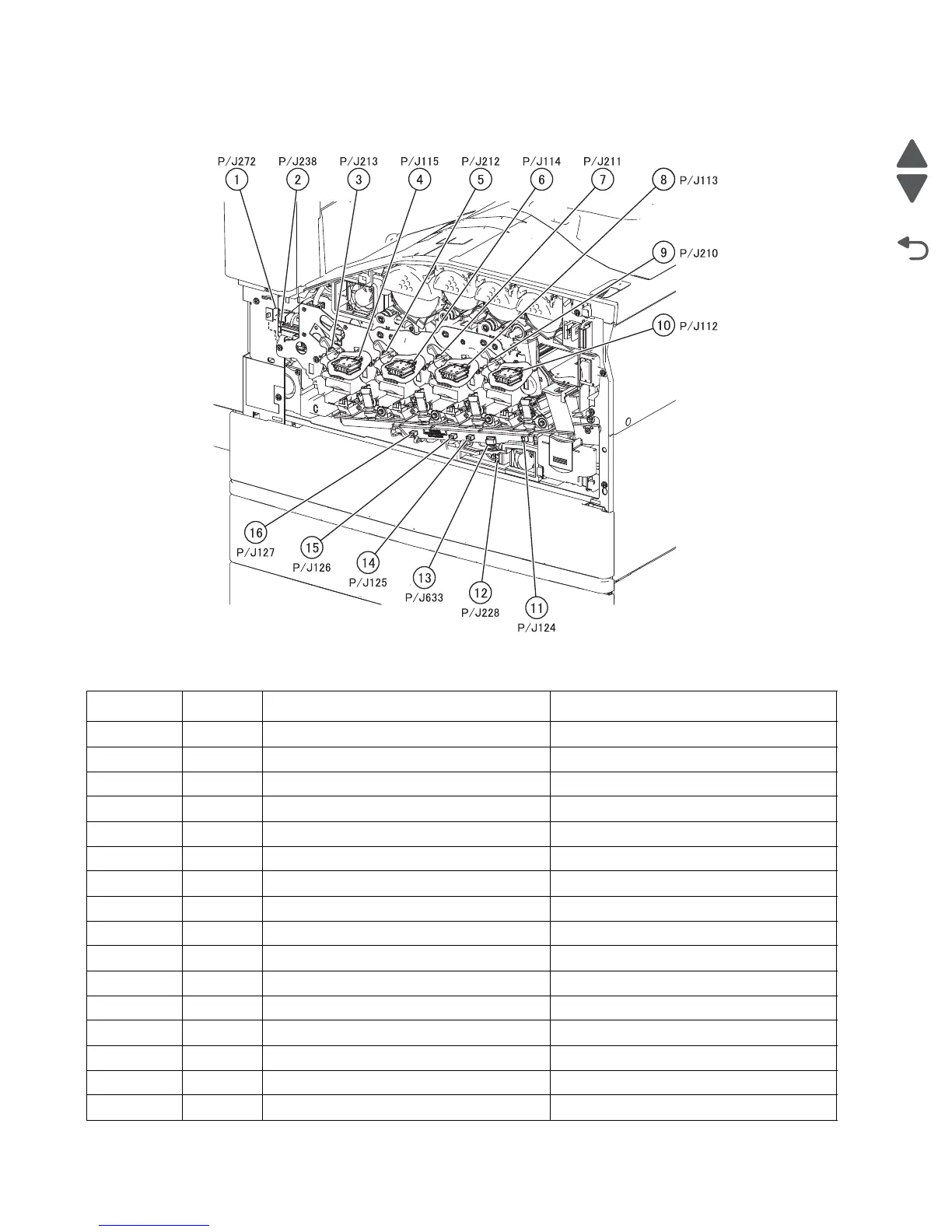

Print engine
Plug/Jack Callout Plug/jack description Connects to
P/J112 10 PC smart chip socket (Y) Lower engine PCBA
P/J113 8 PC smart chip socket (M) Lower engine PCBA
P/J114 6 PC smart chip socket (C) Lower engine PCBA
P/J115 4 PC smart chip socket (K) Lower engine PCBA
P/J124 11 ATC sensor (Y) ATC sensor PCB
P/J125 14 ATC sensor (M) ATC sensor PCB
P/J126 15 ATC sensor (C) ATC sensor PCB
P/J127 16 ATC sensor (K) ATC sensor PCB
P/J210 9 Erase lamp (Y) Upper engine PCBA
P/J211 7 Erase lamp (M) Upper engine PCBA
P/J212 5 Erase lamp (C) Upper engine PCBA
P/J213 3 Erase lamp (K) Upper engine PCBA
P/J228 12 Front right cooling fan Lower engine PCBA
P/J238 2 Front left cooling fa Upper engine PCBA
P/J272 1 Front door sensor Upper engine PCBA
P/J633 13 ATC sensor PCB Lower engine PCBA
