Lexmark C950 - Sensor (Media on Belt) Removal

Repair information 4-149
5058-030
Go Back
Previous
Next

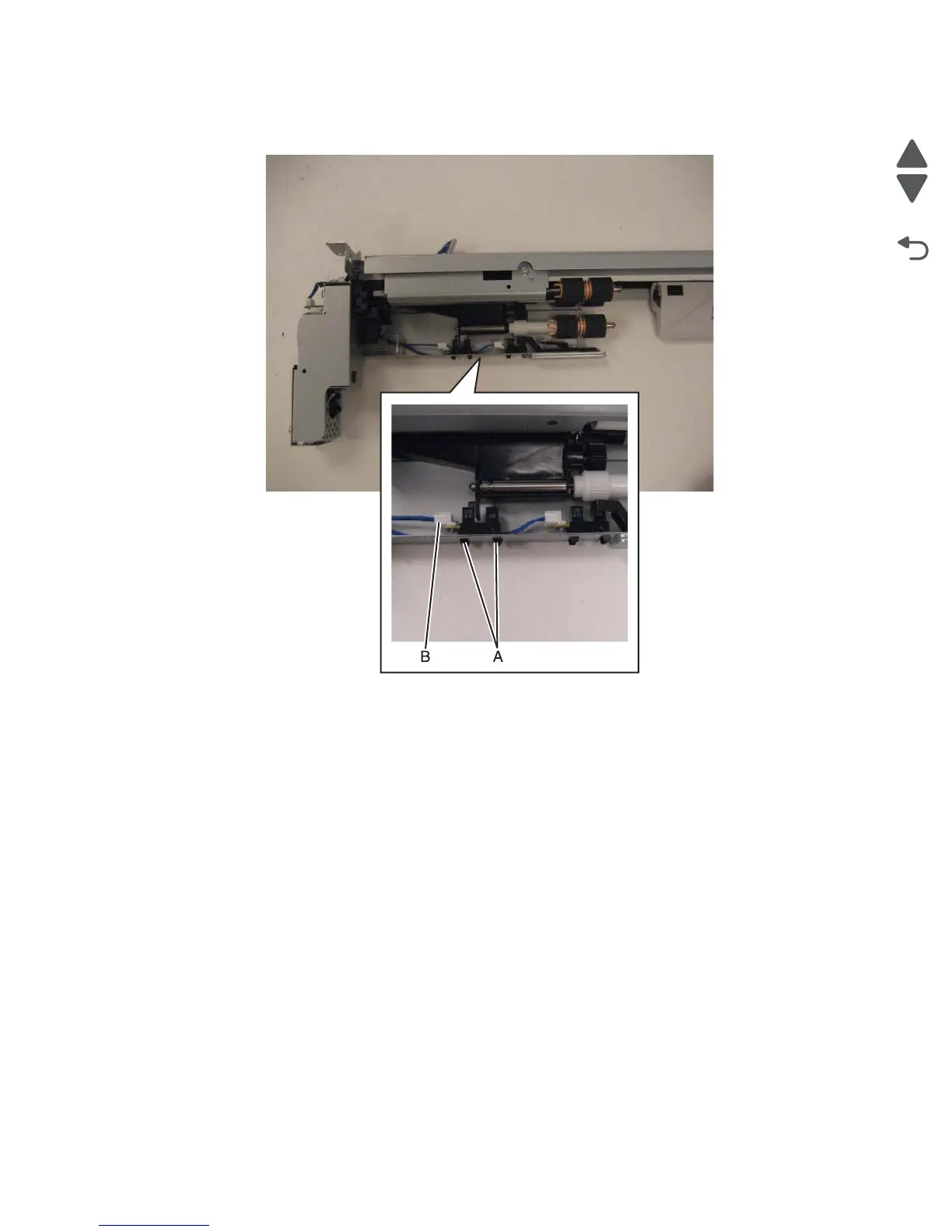

3. Remove the sensor (media level).
4. Disconnect the harness (B).
Sensor (media on belt) removal
1. Open the printer left duplex door assembly.
2. Remove the screw (A) securing the sensor (media on belt) to the machine.
