Lexmark C950 Service Manual

Repair information 4-349
5058-030
Go Back
Previous
Next

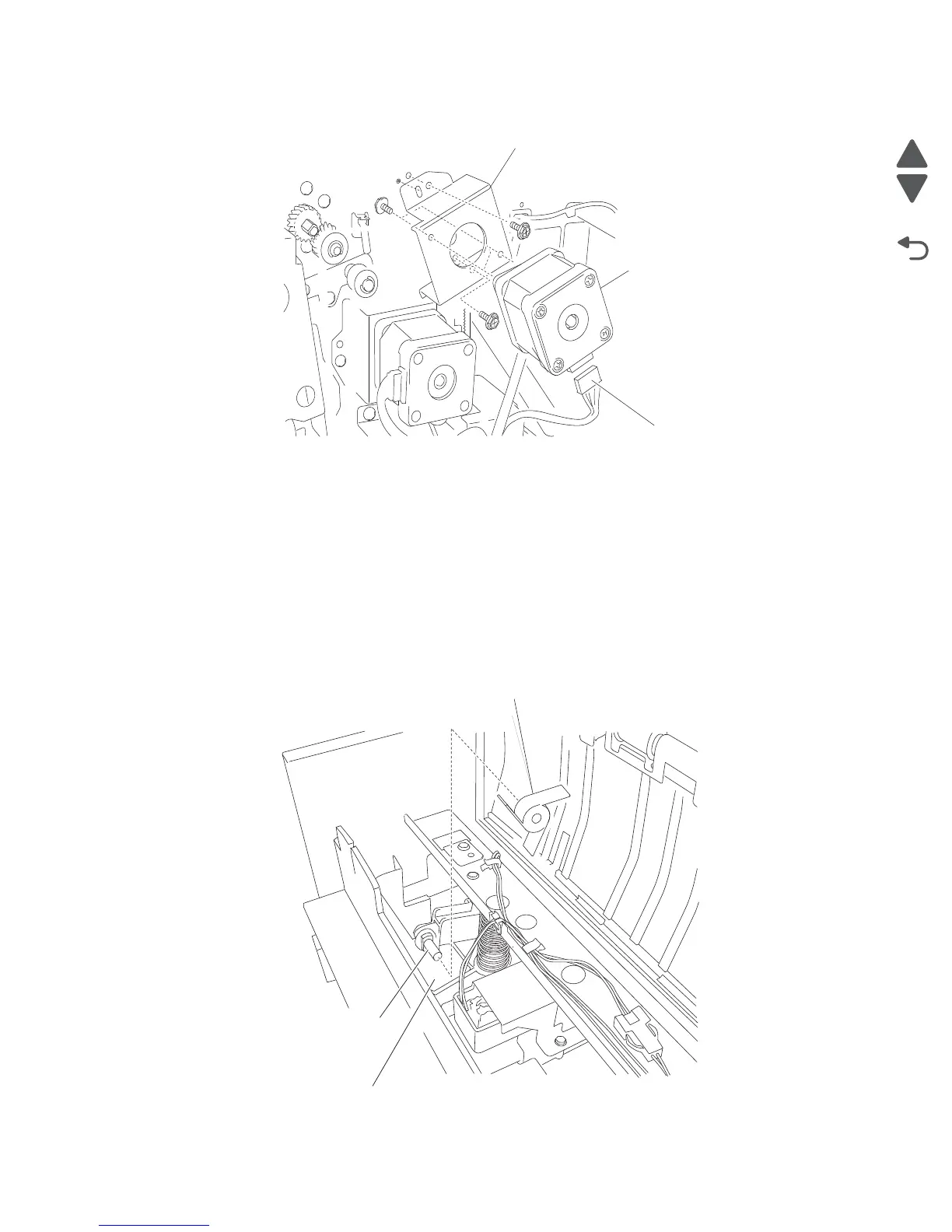

7. Remove the two screws securing the stepper motor (exit) to the bracket (D).
8. Remove the stepper motor (exit) (C).
Replacement notes:
• The tension of the belt (exit) (B) is automatically adjusted by the force of the spring attached to the belt
tensioner bracket (A).
• Tighten the two screws in the order shown.
Sub paddle removal
1. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
2. Gently remove the two sub paddles (A) from the two shafts (B).
Reinstallation note: Make sure the sub paddles are properly installed as shown in the figure. The paddles
must not come in contact with the media eject unit assembly (C).
D
C
Connector
B
C
A
