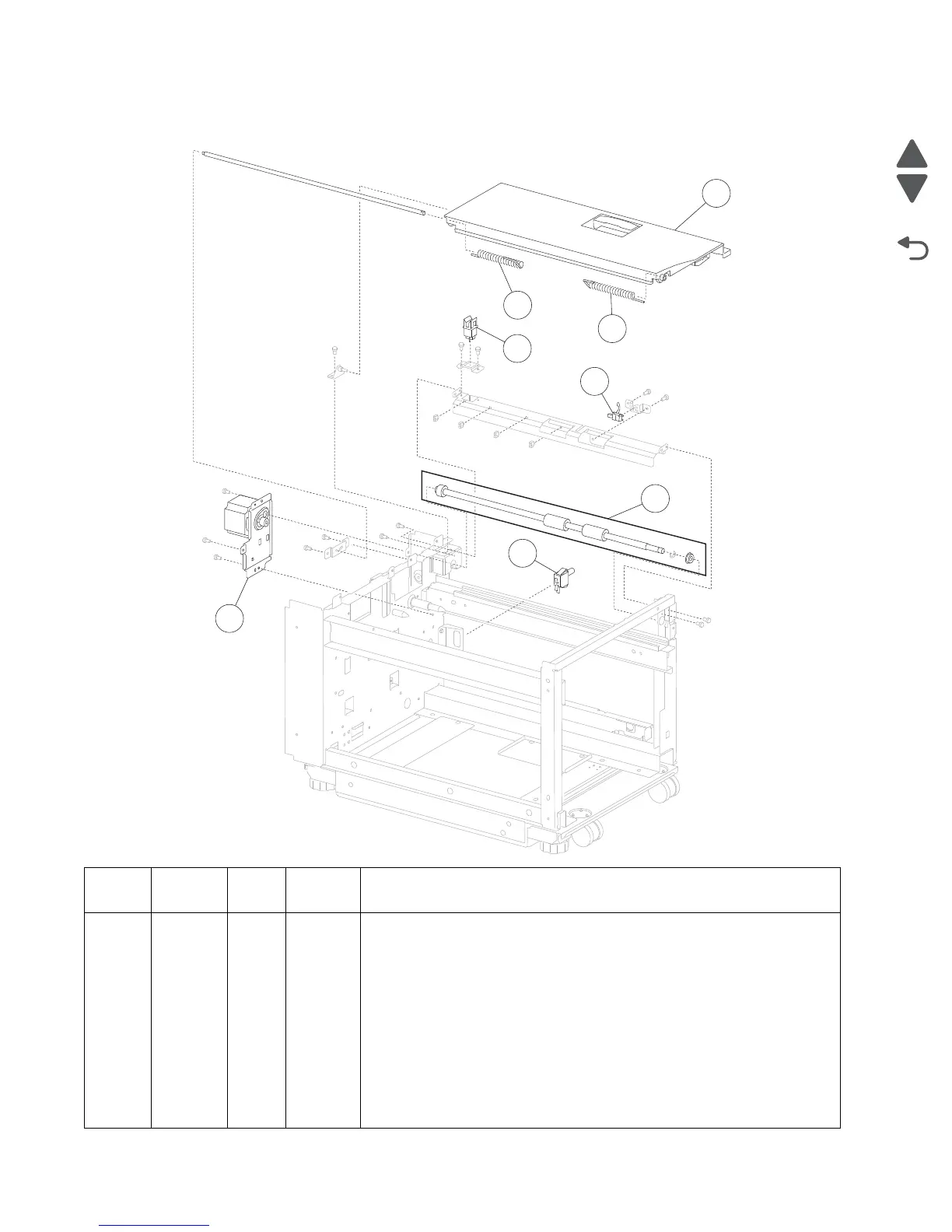

Assembly 88: High capacity feed (HCF)—top door and transport

Asm-

index

Part

number

Units/

mach

Units/

FRU

Description

88-1 40X7471 HCF top door

2 40X7440 HCF top door rear spring

3 40X7450 HCF top door front spring

4 40X0553 11Sensor (HCF top door interlock)

5 40X0774 11Sensor (tray 5 feed out)

6 40X0775 12HCF media transport roller kit includes:

• HCF media transport roller assembly

• 8mm ball bearing

7 40X0777 11Sensor (HCF unit docking interlock)

8 40X0776 11HCF transport motor
