Lexmark C950 - Booklet Unit Gear Train Frame Removal

4-264 Service Manual
5058-030
Go Back
Previous
Next

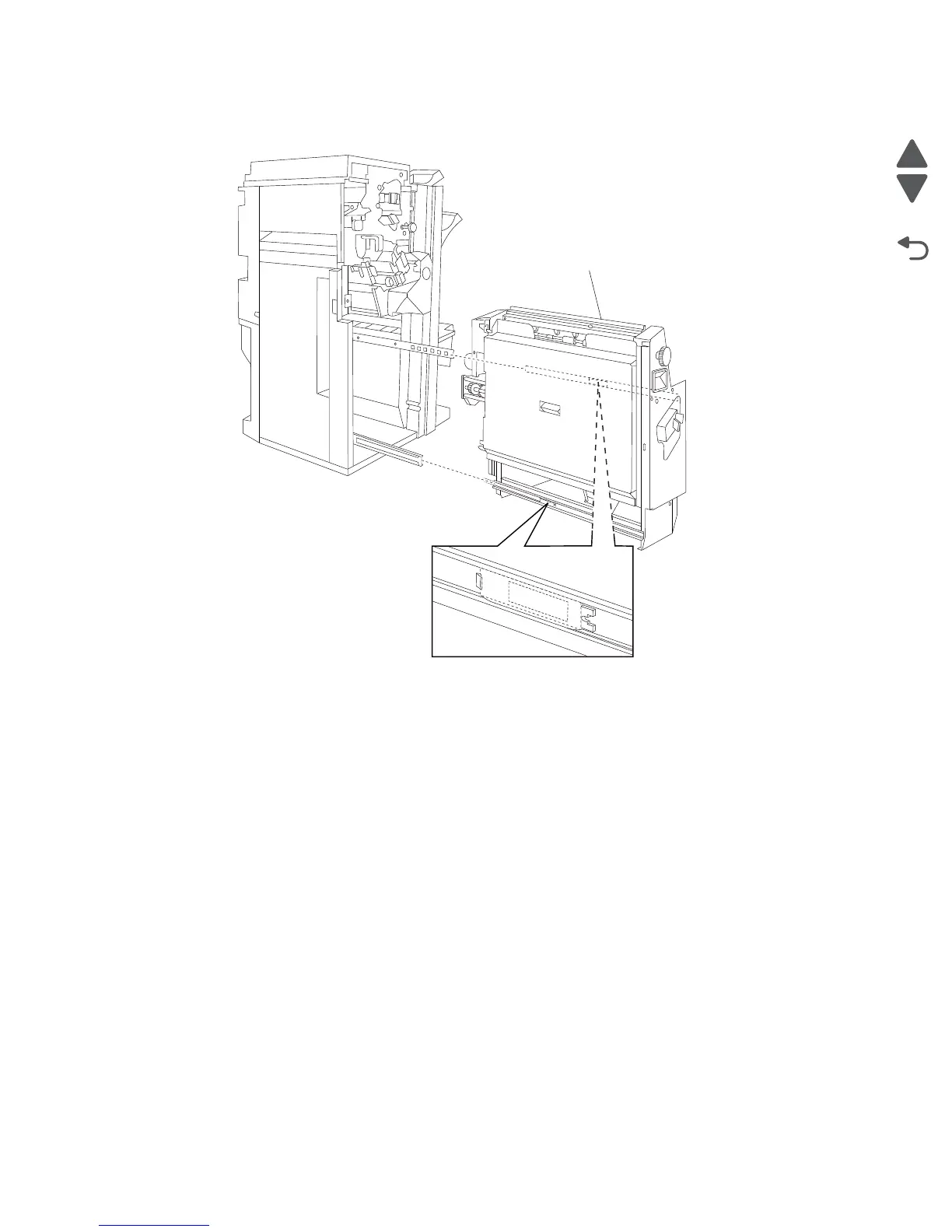

5. Release the two latches securing the booklet unit (A) from the guides.
6. Remove booklet unit (A).
Booklet unit gear train frame removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove the booklet unit motor assembly. See “Booklet folding/exit drive motor assembly removal”
on page 4-254.
3. Remove the knife solenoid frame. See “Booklet fold solenoid frame removal” on page 4-253.
4. Remove the booklet media entrance drive motor. See “Booklet media entrance drive motor removal”
on page 4-257.
5. Remove the booklet knife sector drive gear 42T. See “Booklet knife sector drive gear 42T removal” on
page 4-256.
6. Remove the gear 18T.
A
