Lexmark C950 Service Manual

Connector locations 5-37
5058-030
Go Back
Previous
Next

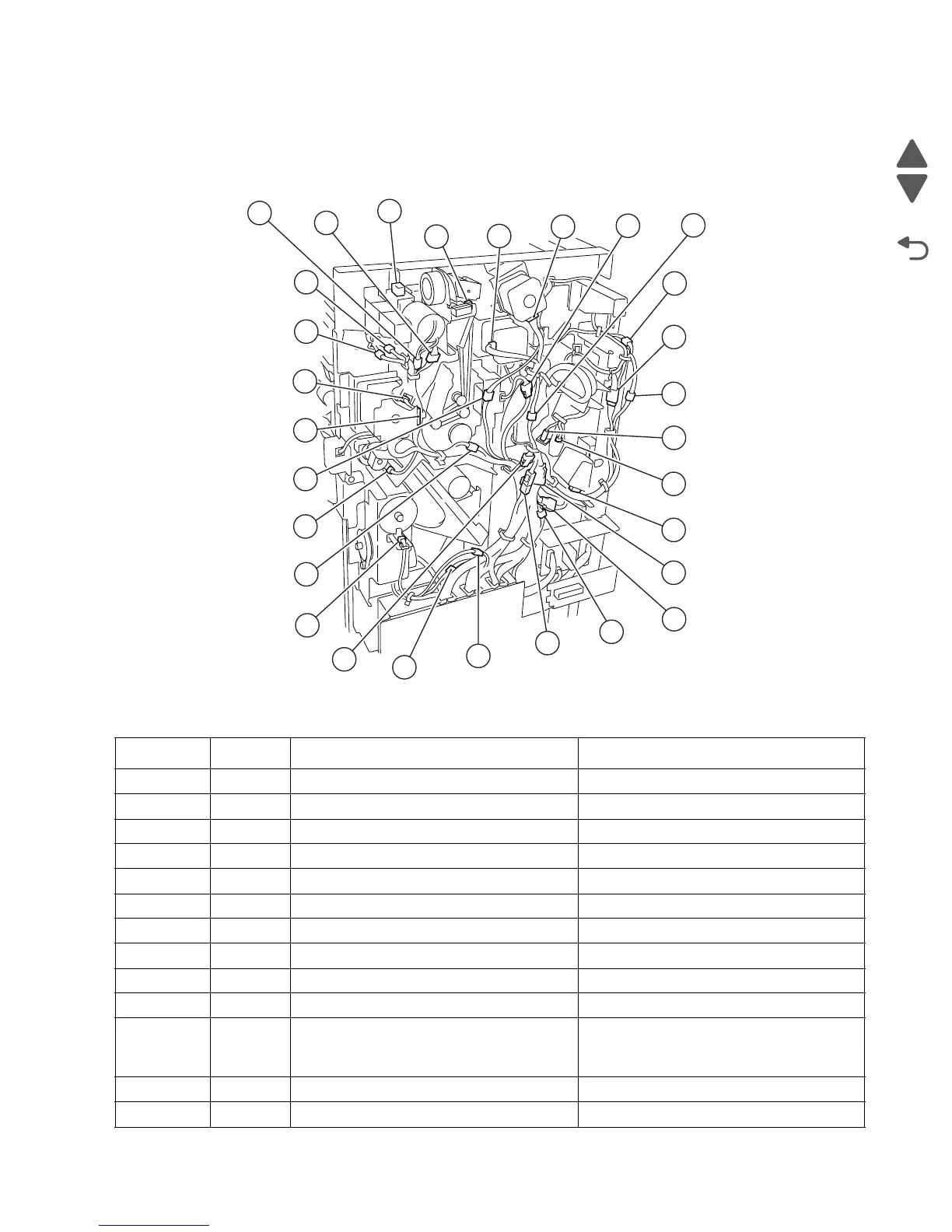

Finisher—rear
Plug/Jack Callout Plug/jack description Connects to
P/J8303A 10 Sensor (finisher media entrance) Finisher controller PCBA
P/J8303B 10 Sensor (finisher media entrance) Finisher controller PCBA
P/J8312A 8 Sensor (upper media exit) Finisher controller PCBA
P/J8312B 8 Sensor (upper media exit) Finisher controller PCBA
P/J8318A 16 Sensor (buffer path) Finisher controller PCBA
P/J8318B 16 Sensor (buffer path) Finisher controller PCBA
P/J8324 26 Sensor (media eject clamp HP) Finisher controller PCBA
P/J8325 23 Sensor (media eject shaft HP) Finisher controller PCBA
P/J8328 21 Sensor (stacker encoder) Finisher controller PCBA
P/J8332 17 Punch unit motor Finisher controller PCBA
P/J8333 14 Finisher controller PCBA • Punch unit frame
• Sensor (punch unit side reg 1)
• Sensor (punch unit motor encoder)
P/J8334 5 Stepper motor Finisher controller PCBA
P/J8335 4 Stepper motor Finisher controller PCBA
P/ J8339
P/ J8385A
P/ J8385B
P/ J8608
1
2
29
P/ J8386
3
P/ J8335
4
5
P/ J8334
P/ J8394
6
P/ J8434A
P/ J8434B
7
P/ J8312A
P/ J8312B
8
9
P/ J8409
P/ J8303A
P/ J8303B
10
11
P/ J8345
12
P/ J8349
13
P/ J8342
14
P/ J8333
15
P/ J8355
16
P/ J8318A
P/ J8318B
17
P/ J8332
18
P/ J8440A
P/ J8440B
19
P/ J8441A
P/ J8441B
20
P/ J8341
P/ J8328
21
P/ J8338A
P/ J8338B
22
P/ J8325
23
P/ J8651
24
P/ J8336
25
P/ J8324
26
P/ J8391A
P/ J8391B
27
P/ J8393A
P/ J8393B
28
