7-48 Service Manual
5058-030

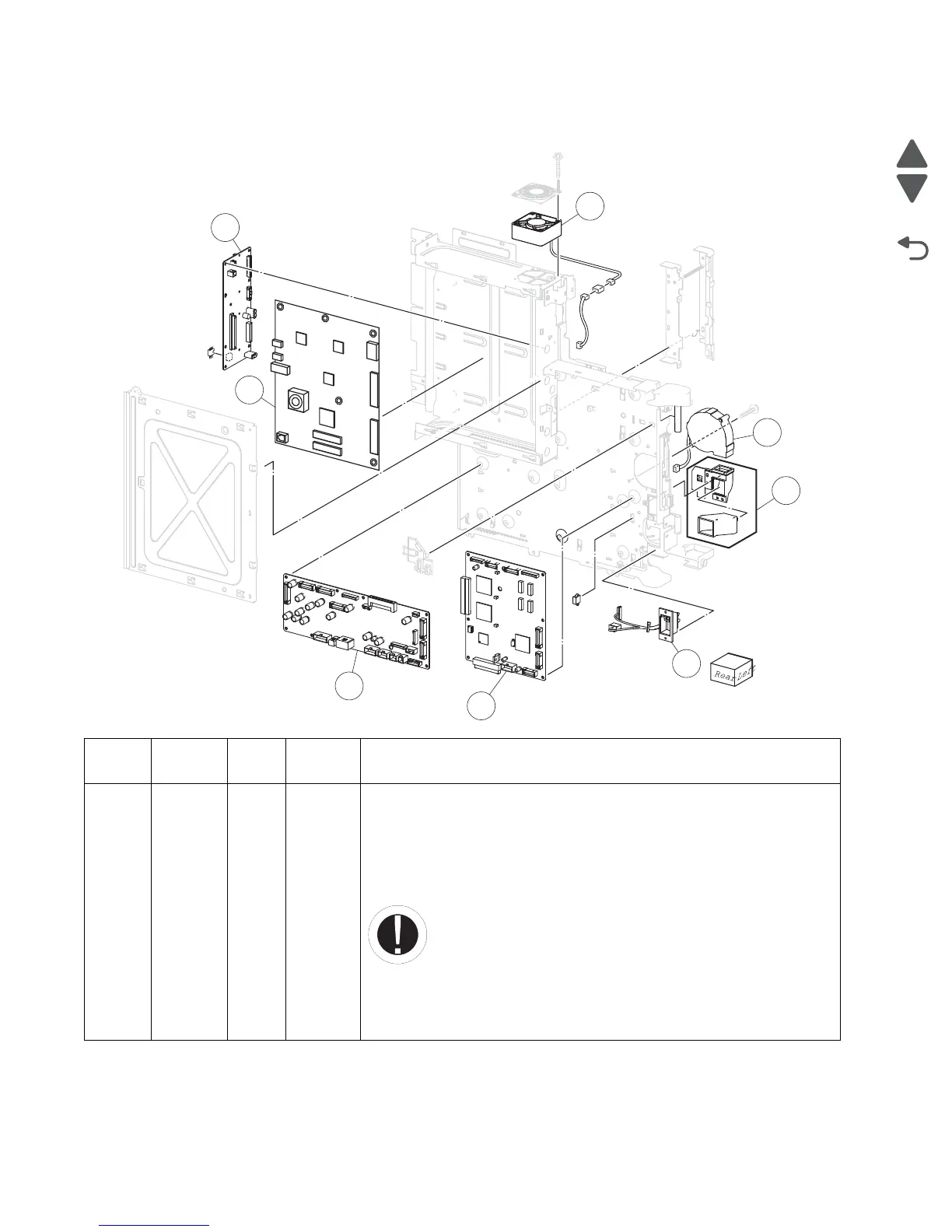

Assembly 47: Electrical 1
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
47-1 40X6728 11Controller cooling fan
2 40X6729 11Suction fan
3 40X6733 12Suction fan duct
4 40X6732 11HCF interface contact
5 40X6730 11Upper printer engine PCBA
Warning: Upon replacement, ensure that the NVM EPROM is
removed from the defective PCBA and installed to the new
PCBA or damage to the machine may occur. For more details,
go to
“Upper engine PCBA reinstallation” on page 4-182.
6 40X6731 11Lower engine PCBA
7 40X7462 11RIP PCBA (SFP)
8 40X7464 11Bridge PCBA (SFP)
To Next Page
