Lexmark C950 - Bridge Unit Top Door Spring Removal

Repair information 4-235
5058-030
Go Back
Previous
Next

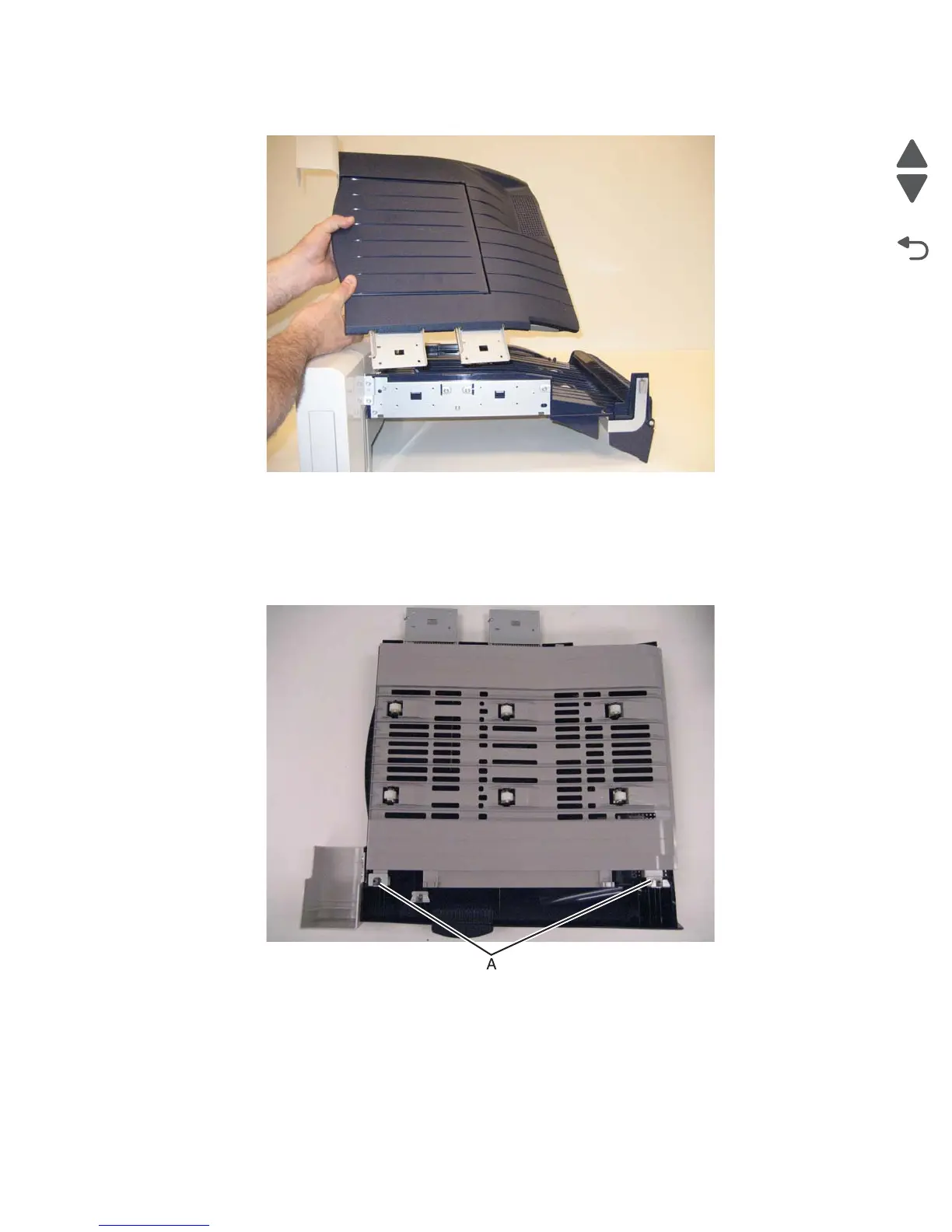

5. Remove the bridge unit top door.
Bridge unit top door spring removal
1. Remove the bridge unit top door.
2. Place the bridge unit top door upside down on the work surface.
3. Remove the two screws (A) securing the two hold-down brackets to the machine.
