Lexmark C950 - HCF Media Tray Assembly Removal

4-366 Service Manual
5058-030
Go Back
Previous
Next

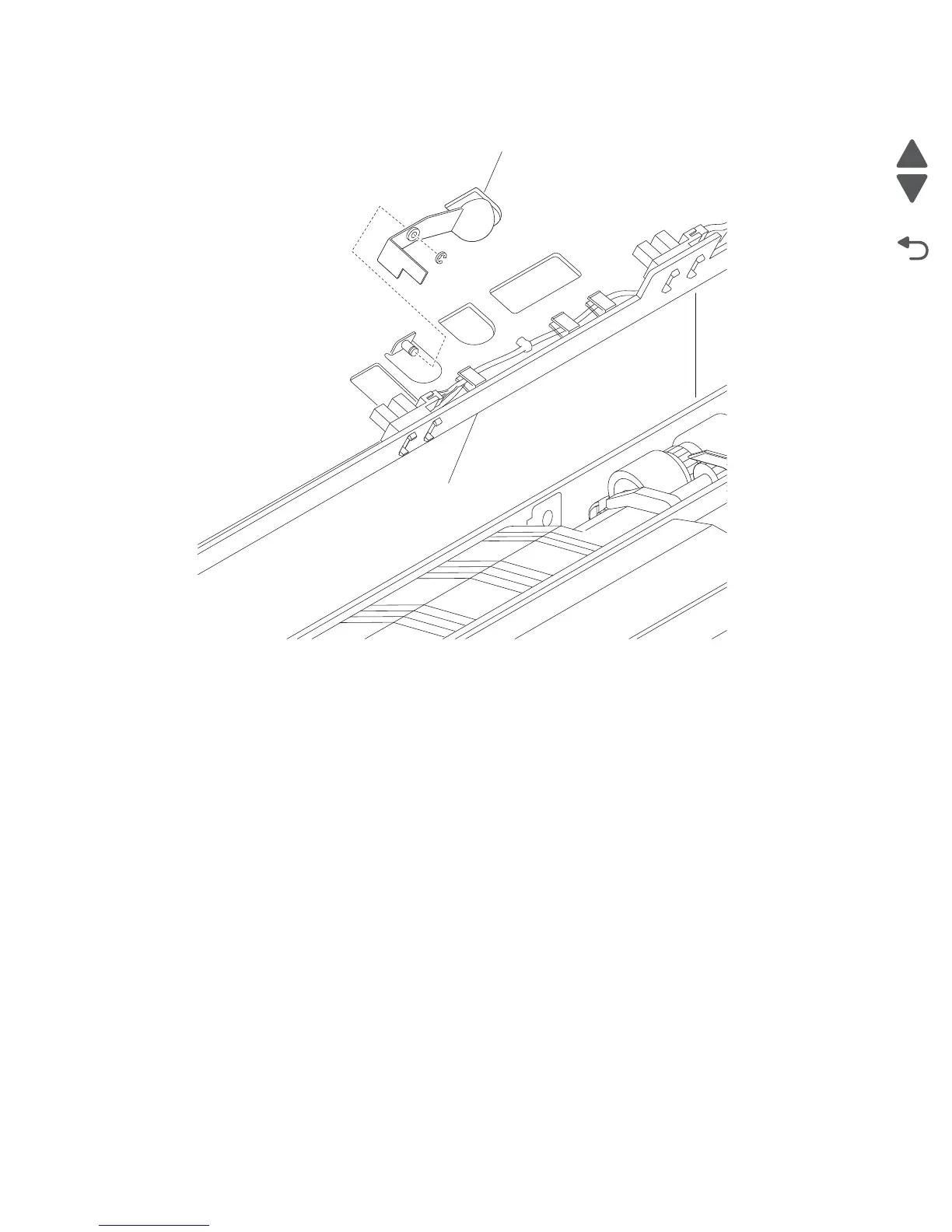

4. Remove the media out actuator (A).
HCF media tray assembly removal
1. Pull out the HCF media tray assembly (A) from the unit.
2. Release the two bearing slides (B) by inserting a prying tool into the two holes while pulling the HCF media
tray (A) from the frame assembly (B).
A
B
E-clip
