Lexmark C950 - Media out Actuator Removal; Media Size Switch PCB Removal

Repair information 4-117
5058-030
Go Back
Previous
Next
Media out actuator removal
1. Remove the appropriate feeder unit. See “Printer tray 1 feeder removal” on page 4-138, “Tray module
media feeder removal” on page 4-208, “TTM tray 4 media feeder removal” on page 4-221, or “TTM
tray 3 feeder removal” on page 4-217.

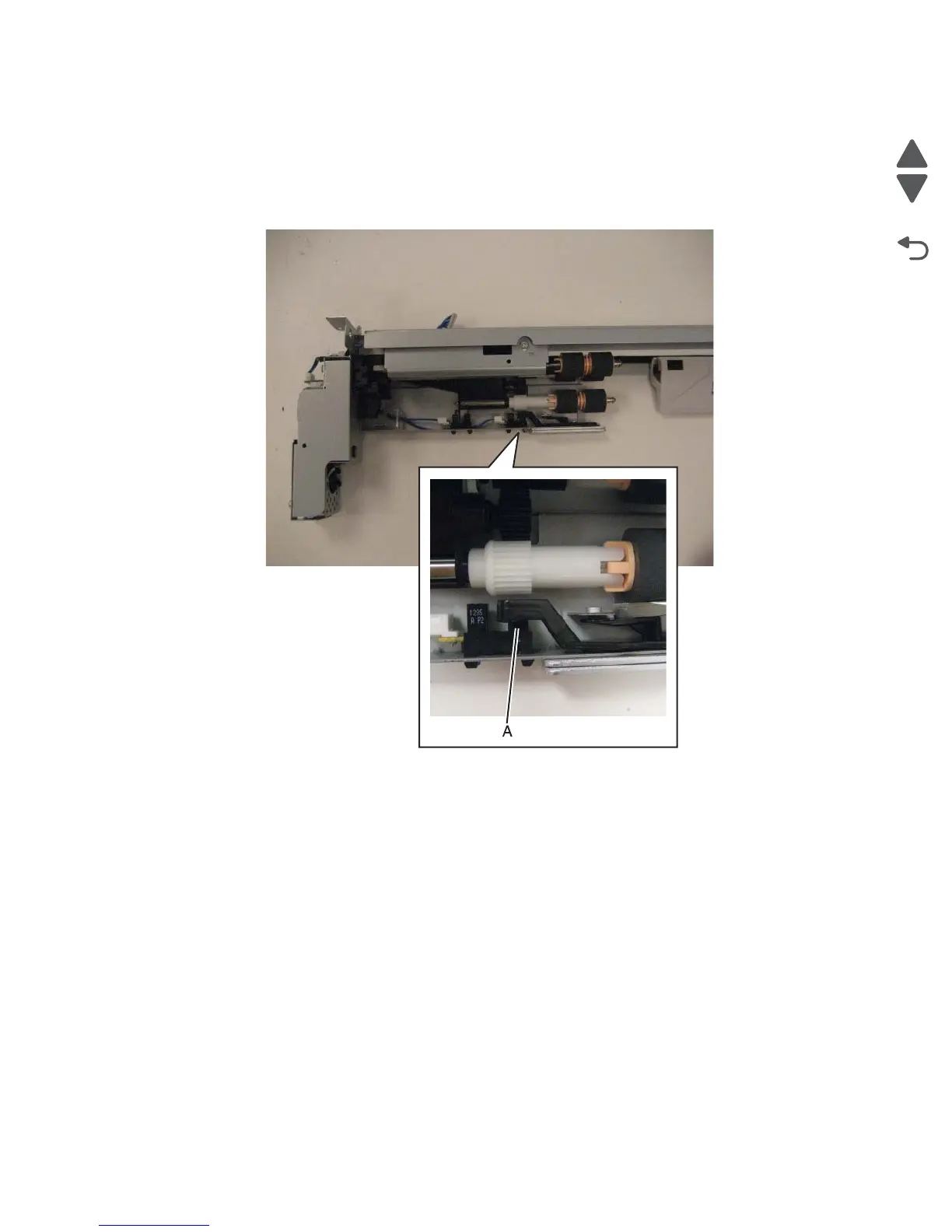

2. Release the tab (A) securing the media out actuator to the assembly.
3. Remove the media out actuator.
Media size switch PCB removal
1. Remove the Media tray 1 from the machine.
2. Remove the screw (A).
