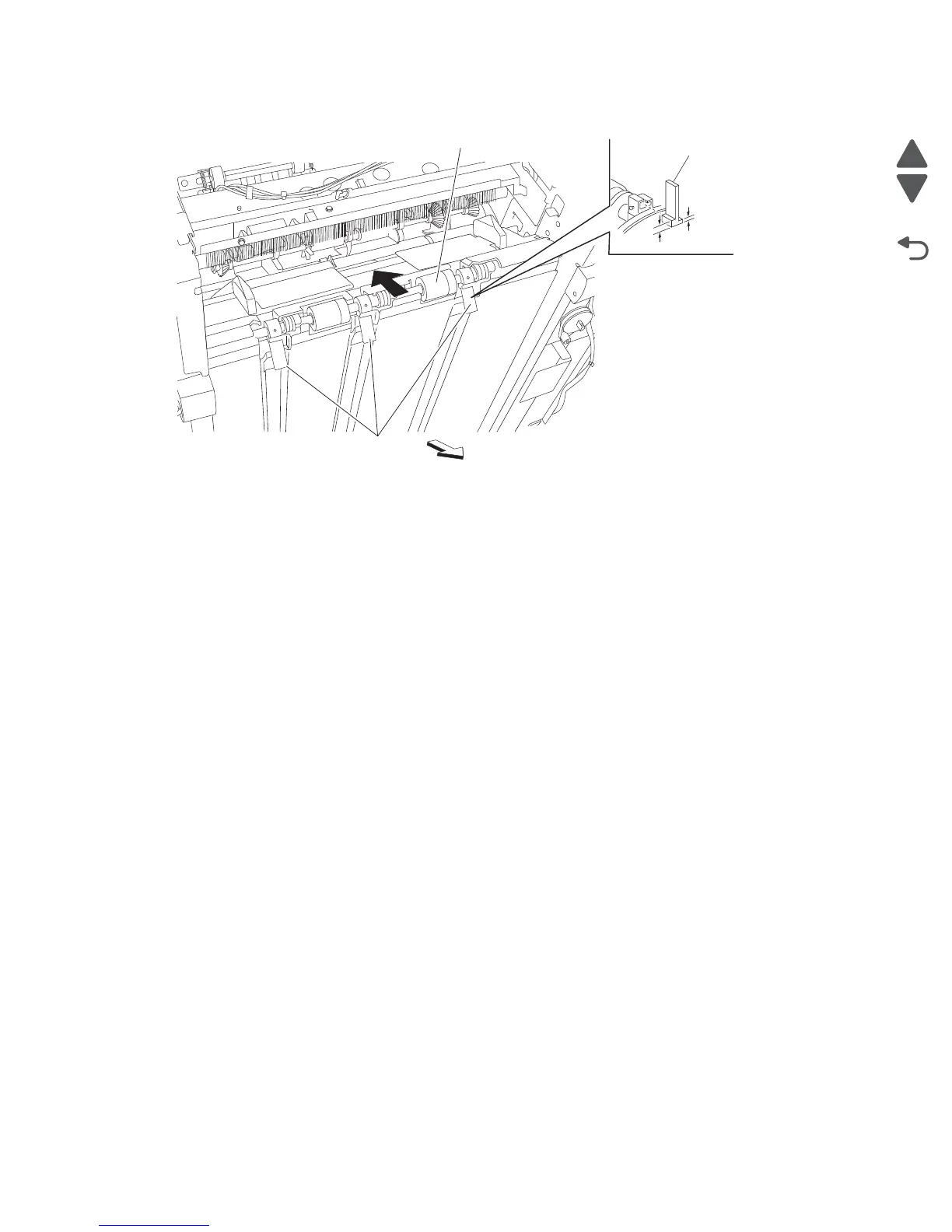

4. Remove the three clamp paddles (A) by sliding them out of the media eject shaft assembly (B).
Reinstallation note: Replacement is easier if you lightly moisten the rubber surface of the paddles with water.
Eject roll shaft removal
1. Remove the finisher front door assembly. See “Finisher front door assembly removal” on page 4-276.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Move the slip clutch gear 24T (A) toward the rear as shown to disengage the stacker bin (B).
4. Move the stacker bin down as shown to its lowest position after it is disengaged.
Note: Make sure the stacker bin is at its lowest position before continuing.
5. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
Right
A
B
A
Narrow
Wide
