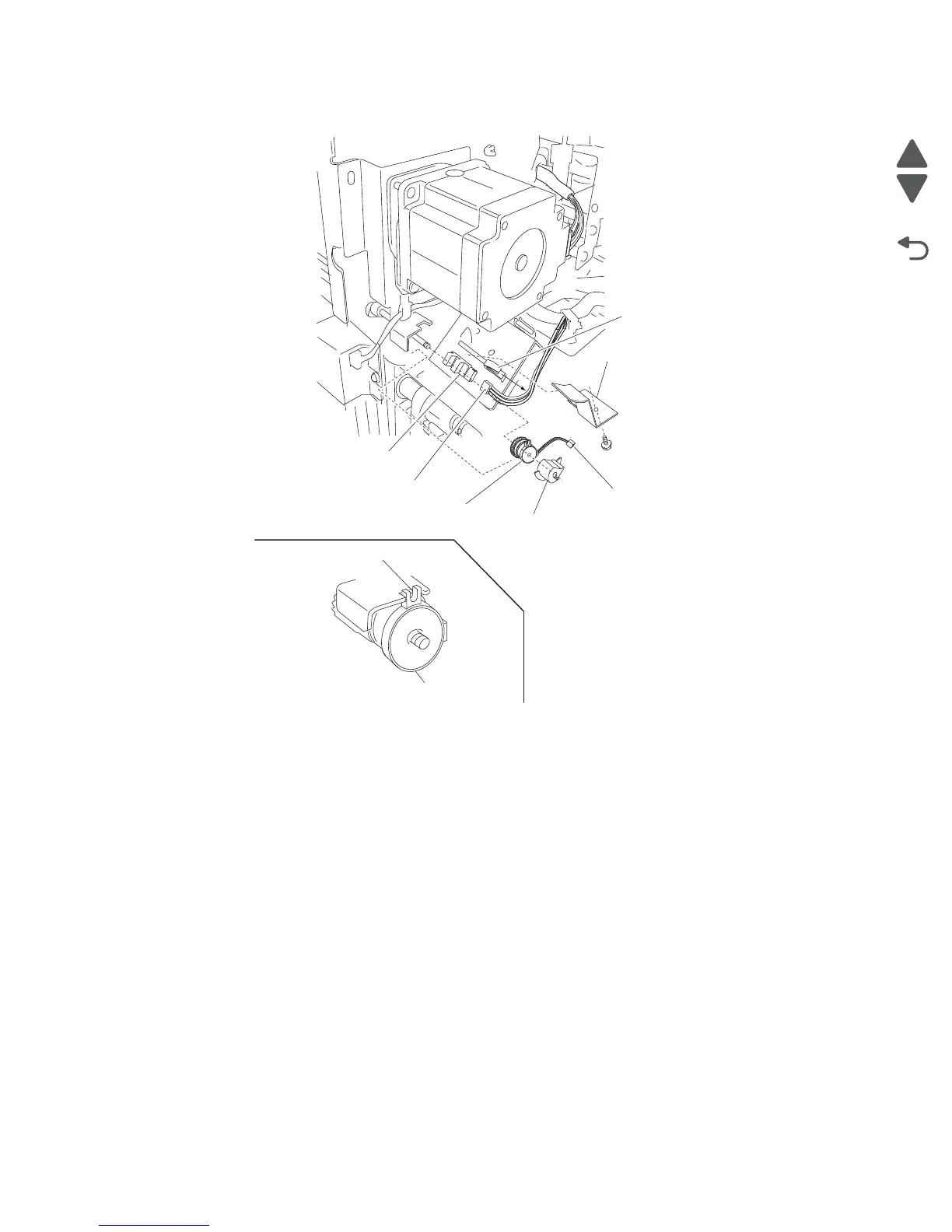

7. Remove the screw securing the spring clamp (D) to the finisher.
8. Remove the spring clamp (D).
9. Remove the media eject clutch actuator (C).
10. Remove the media eject clamp clutch (B).
Installation note: Make sure the hook on the media eject clamp clutch is placed in the notch of the bracket.
Media eject motor assembly removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
2. Remove the media eject clutch. See “Media eject clamp clutch removal” on page 4-297.
3. Disconnect the connector from the media eject motor assembly (A).
4. Disconnect the connector from the sensor (media bin level 2) (B).
A
D
C
B
Notch
Clamp
B
Connector
Connector
