Lexmark C950 - Stacker bin Lift Motor Assembly Removal

Repair information 4-337
5058-030
Go Back
Previous
Next

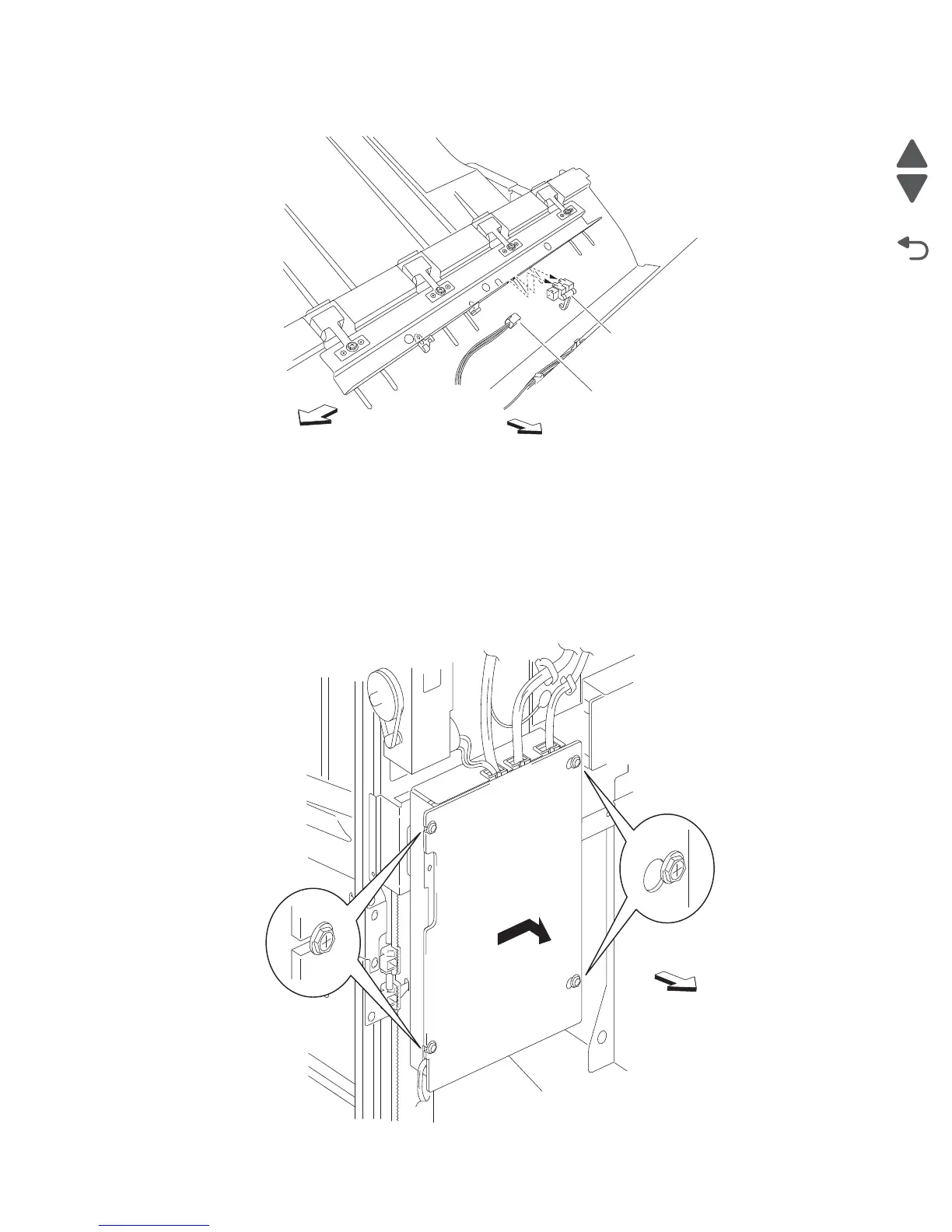

5. Disconnect the connector from the sensor (upper media exit) (A).
6. Release the hooks securing the sensor (upper media exit) (A) to the finisher.
7. Remove the sensor (upper media exit) (A).
Stacker bin lift motor assembly removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
2. Remove the rear lower cover. See “Upper media bin front cover removal” on page 4-353.
3. Loosen the four screws securing the plate (A).
4. Move the plate (A) toward the right as shown.
Rear
Left
A
Connector
A
Rear
