Lexmark C950 Service Manual

4-338 Service Manual
5058-030
Go Back
Previous
Next

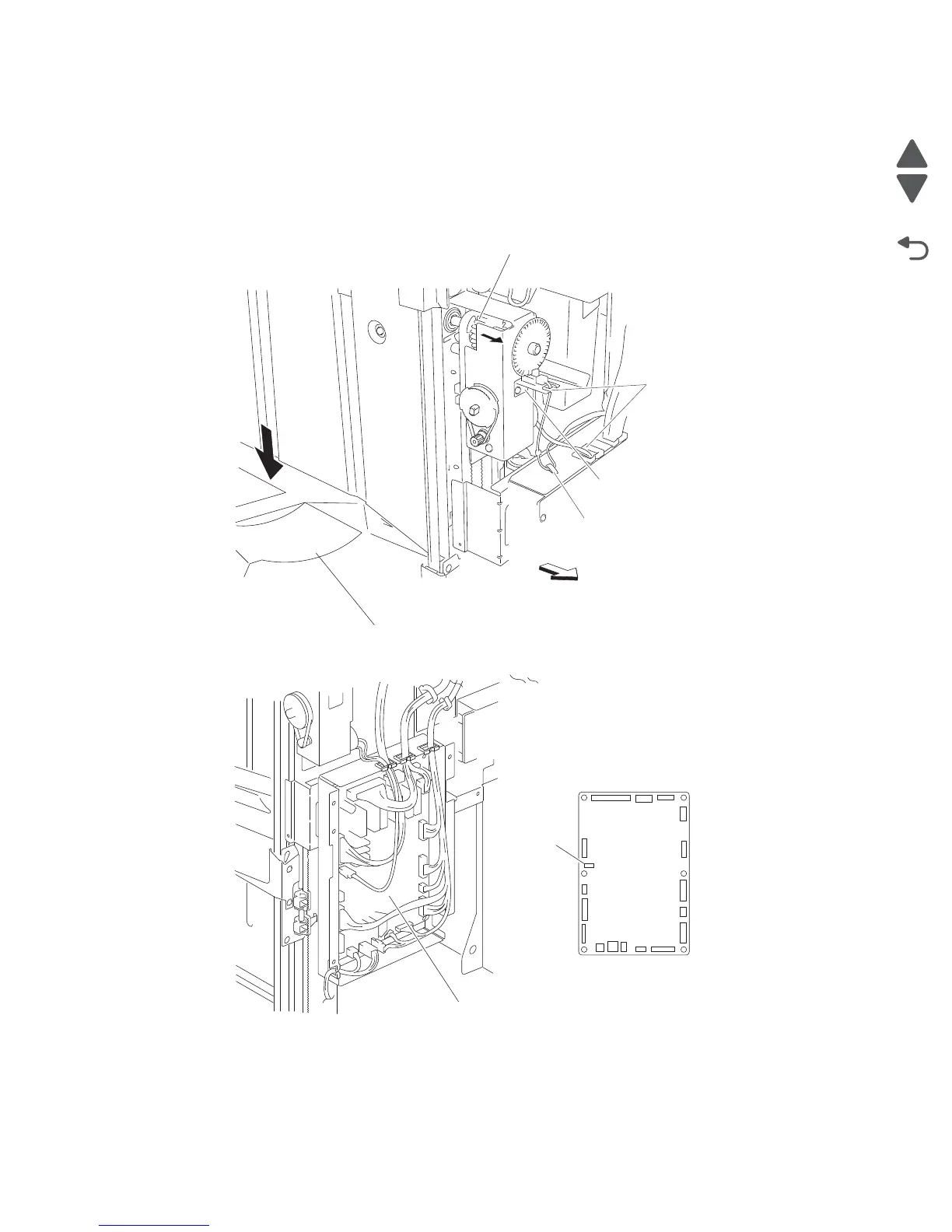

5. Remove the plate (A).
6. Move the slip clutch gear 24T (B) toward the rear to disengage the stacker bin (C).
7. Move the stacker bin (C) to the lowest position.
Note: Make sure the stacker bin (C) is at the lowest position before continuing.
8. Disconnect the connector from the sensor (stacker bin level encoder) (D).
9. Release the harness from the clamps.
10. Disconnect the connector (P8305) from the finisher controller card assembly (E).
11. Remove the screw securing the bracket (F) to the stacker bin lift motor assembly (G).
C
B
Rear
Clamp
Clamp
D
P8305
E
