Lexmark C950 - Printer Top Cover Removal

4-12 Service Manual
5058-030
Go Back
Previous
Next

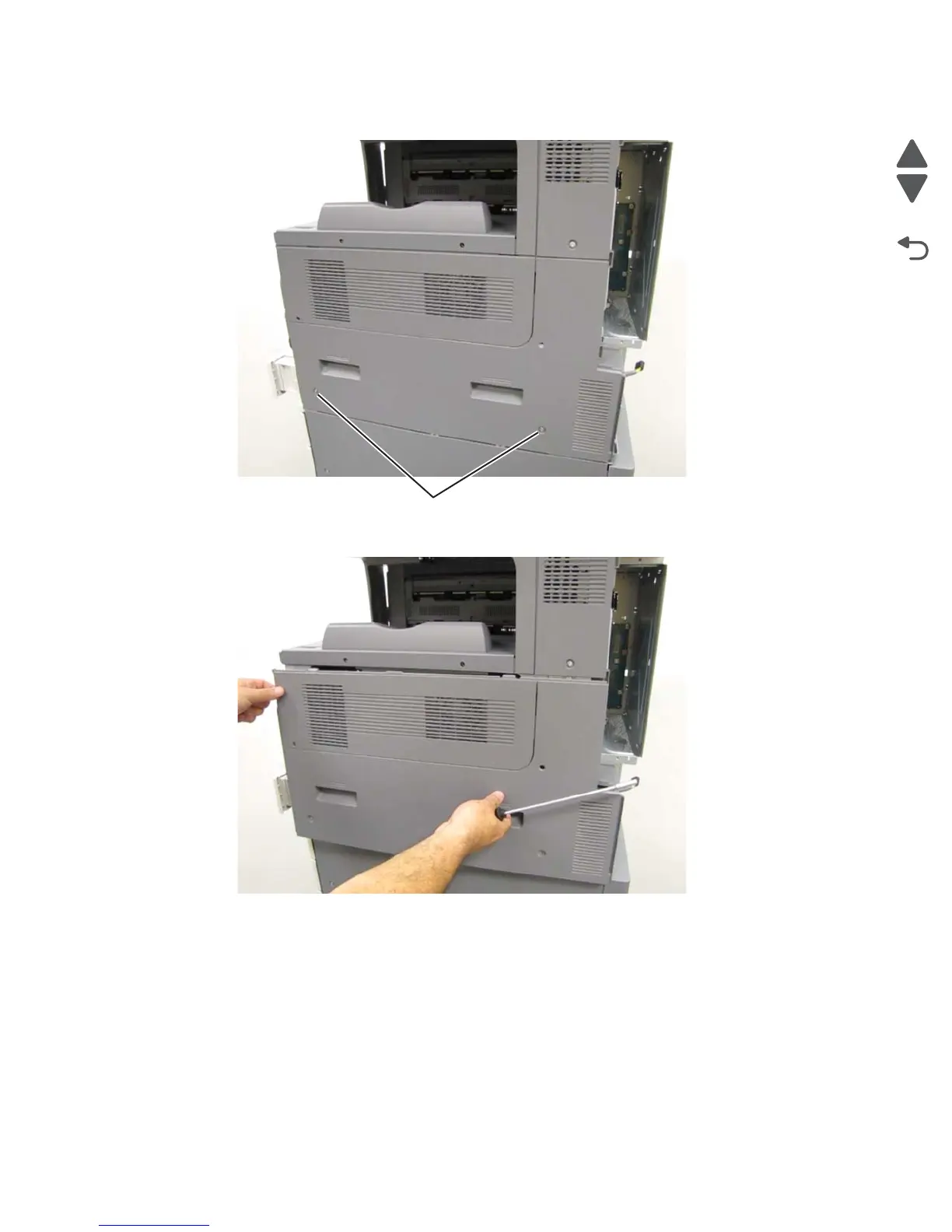

5. Remove the two screws (A) from the printer right cover.
6. Remove the printer right cover.
Printer top cover removal
1. Open the printer front door.
2. Remove the operator panel front cover.
A
