5-26 Service Manual
5058-030
Go Back
Previous
Next

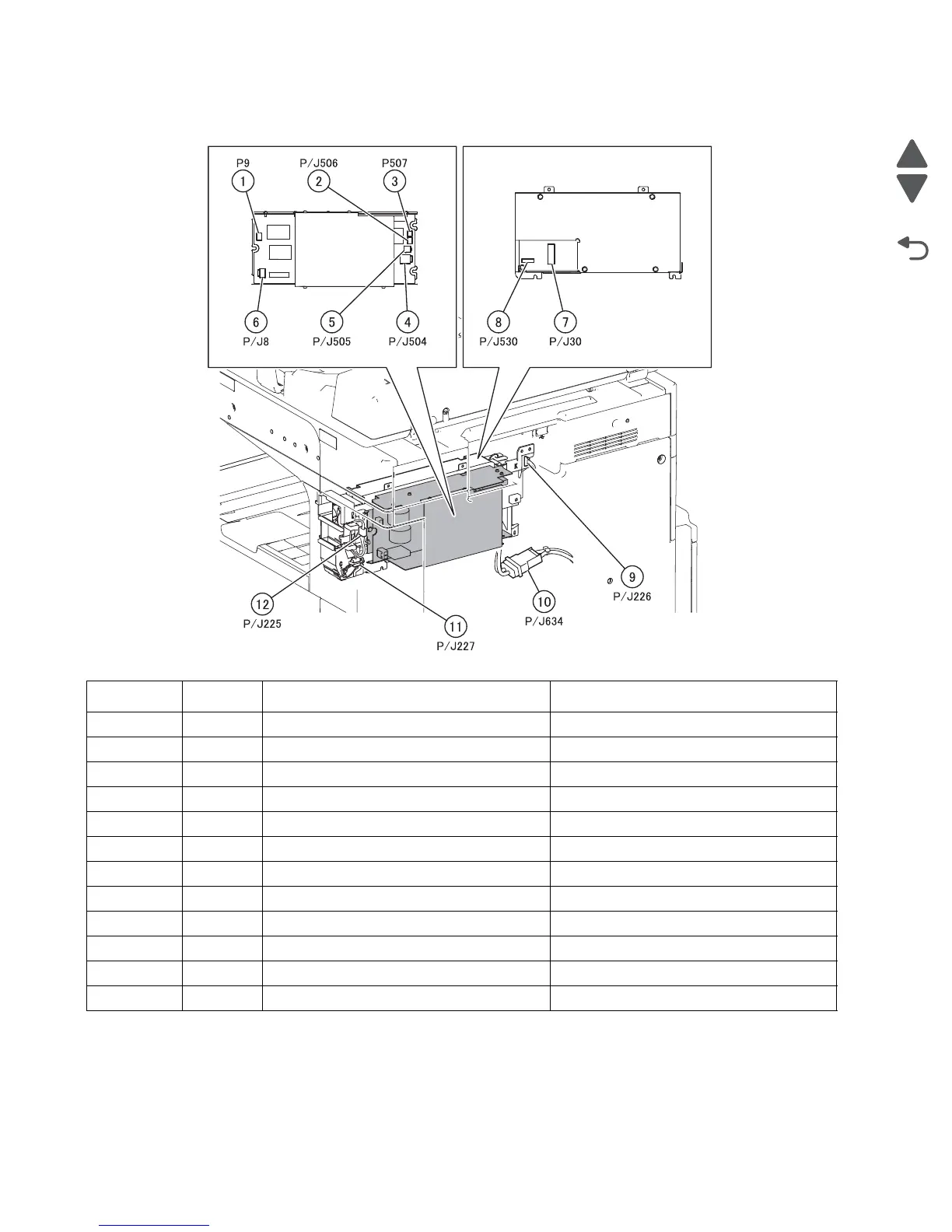

Fuser drive, sub LVPS
Plug/Jack Callout Plug/jack description Connects to
P/J8 6 Sub LVPS PCBA LVPS PCBA
P9 1
P/J30 7 Fuser driver PCBA LVPS PCBA
P/J225 12 Upper exhaust fan Upper engine PCBA
P/J226 9 Fuser driver PCBA cooling fan Lower engine PCBA
P/J227 11 Front upper cooling fan Lower engine PCBA
P/J504 4 Sub LVPS PCBA Lower engine PCBA
P/J505 5 Sub LVPS PCBA Scanner controller PCBA
P/J506 2 Sub LVPS PCBA Lower engine PCBA
P507 3
P/J530 8 Fuser driver PCBA Upper engine PCBA
P/J634 10 Fuser assembly Fuser driver PCBA
