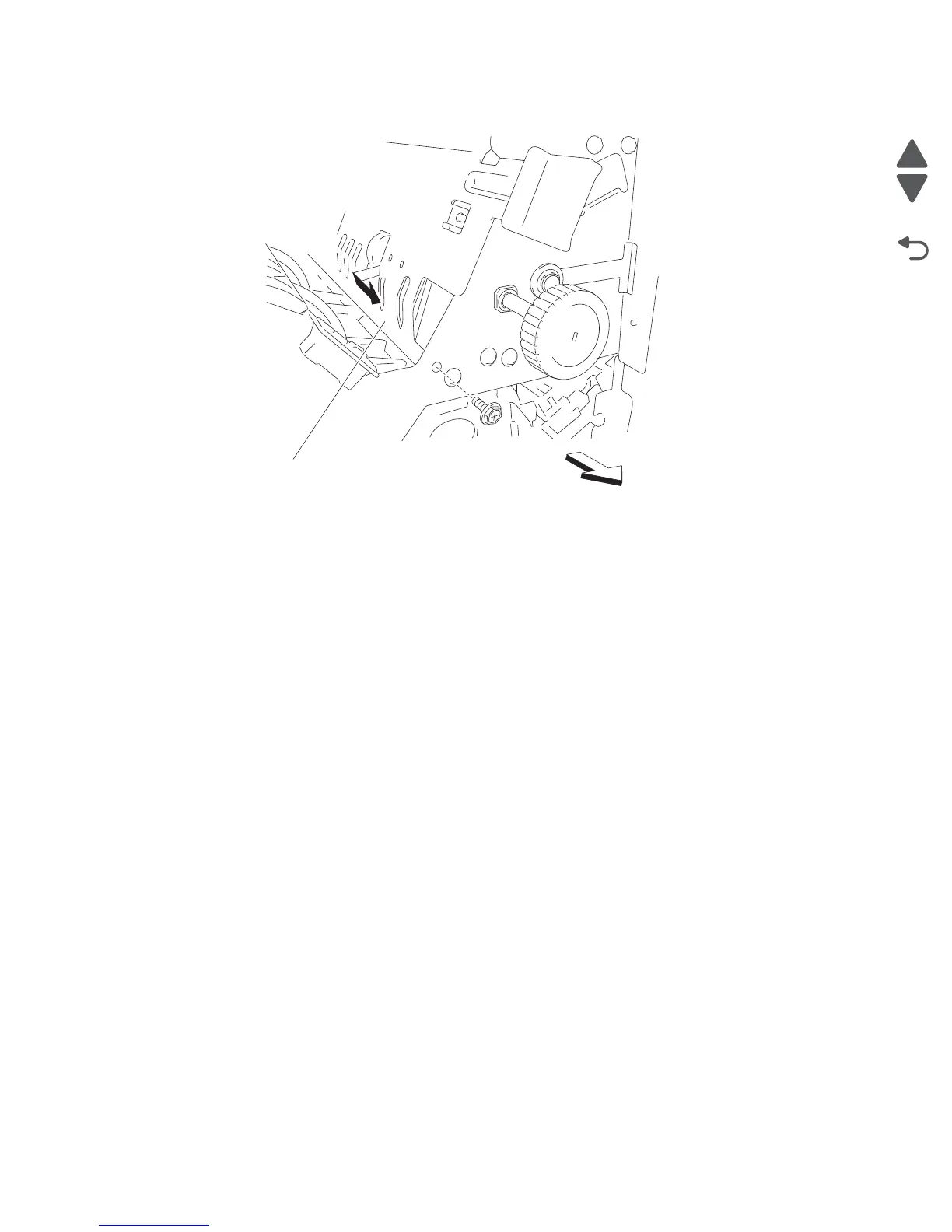

4. Move the lower pinch guide assembly (A) upward and outward.
5. Remove the lower pinch guide assembly (A).
Media compiler unit assembly removal
1. Remove the finisher front door assembly. See“Finisher front door assembly removal” on page 4-276.
2. Remove the rear upper cover. See “Rear upper cover removal” on page 4-309.
3. Remove the rear lower cover. See “Upper media bin front cover removal” on page 4-353.
4. Remove the upper media bin assembly. See “Upper media bin assembly removal” on page 4-352.
5. Remove the upper media bin vertical cover. See “Right eject cover removal” on page 4-310.
6. Remove the stapler unit frame. See “Stapler unit frame removal” on page 4-342.
7. Remove the media eject clamp motor assembly. See “Clamp drive motor removal” on page 4-268.
8. Remove the media eject unit assembly. See “Media eject unit assembly removal” on page 4-299.
9. Remove the media eject motor assembly. See “Media eject motor assembly removal” on page 4-298.
10. Loosen the four screws securing the plate (A) to the finisher.
A
Front
