Lexmark C950 - TTM Lower Transport Motor Removal

4-216 Service Manual
5058-030
Go Back
Previous
Next

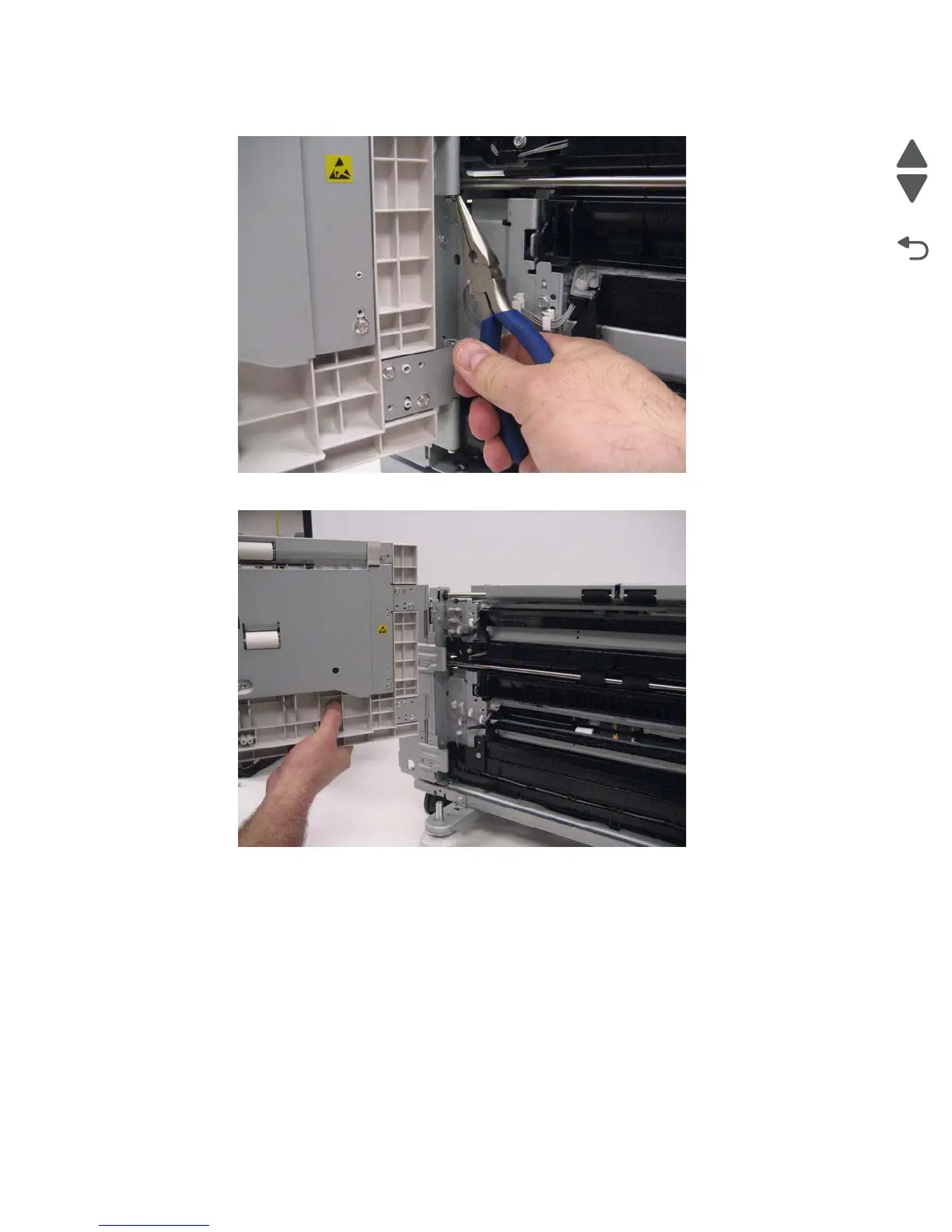

3. Remove the metal clip from the hinge.
4. Lift the TTM left door and remove it from the machine.
TTM lower transport motor removal
1. Remove the tray module rear cover. See “Tray module rear cover removal” on page 4-211.
2. Disconnect the cable (A).
3. Release the harness from the clamp (B).
