Lexmark C950 Service Manual

3-104 Service Manual
5058-030
Go Back
Previous
Next
Media transport
Media transport path
Media is supplied from tray 2, tray 3 or tray 4, and is transported to the printer along the media transport path.

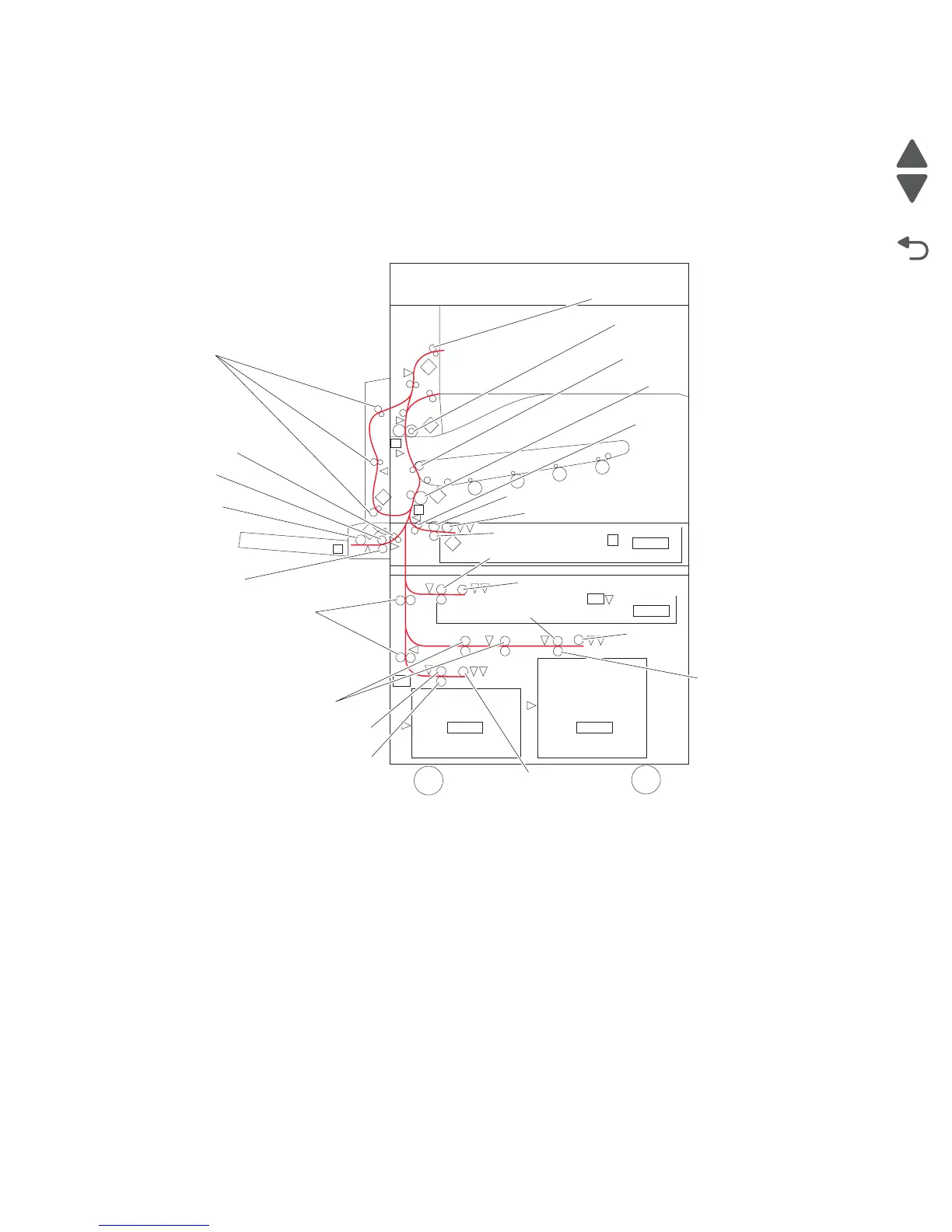

The following is a cross section of the printer and the TTM, showing the main components directly associated
with the media path and transport.
Functions of main components
When the TTM is installed under the printer, additional trays are available.
Media tray assembly
It is necessary to adjust the rear side guides in the media tray assembly to match the media size.
Rear media guide
The rear media guide can be adjusted to different media sizes by moving it to the front or rear. The guide comes
into contact with the rear edge of the media and holds it in position.
TRAY 1TRAY 1
Duplex media transport roll assembly
MPF transport roll
MPF feed roll
MPF pick roll
MPF separation roll
Feed roll
Separation roll
Pick roll
Tray 1 transport roll assembly
Registration roll assembly
2nd transfer roll assembly
Fuser
Redrive roll
Tray module transport
roll assembly
Tray 4 transport roll assembly
Feed roll
Pick roll
Feed roll
Pick roll
Separation roll
Feed roll
Separation roll
Pick roll
TRAY 2TRAY 2
TRAY 3TRAY 3
TRAY 4TRAY 4

Lexmark C950 Specifications

General

Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Processor Speed	1.2 GHz
Connectivity	Ethernet, USB
Print Technology	Laser
Print Speed	50 ppm
Monthly Duty Cycle	300000 pages
Recommended Monthly Page Volume	5, 000 - 33, 000 pages
Memory	1024 MB
Hard Drive	Optional
Output Capacity	500 sheets
Interface	USB 2.0
Media Type	Plain paper, Card stock, Labels, Envelopes, Transparencies
Total Media Capacity	5140 sheets
Media Sizes	Letter, Legal, A4, A5, Executive, Folio, Statement
Operating Systems Supported	Windows, Mac, Linux
