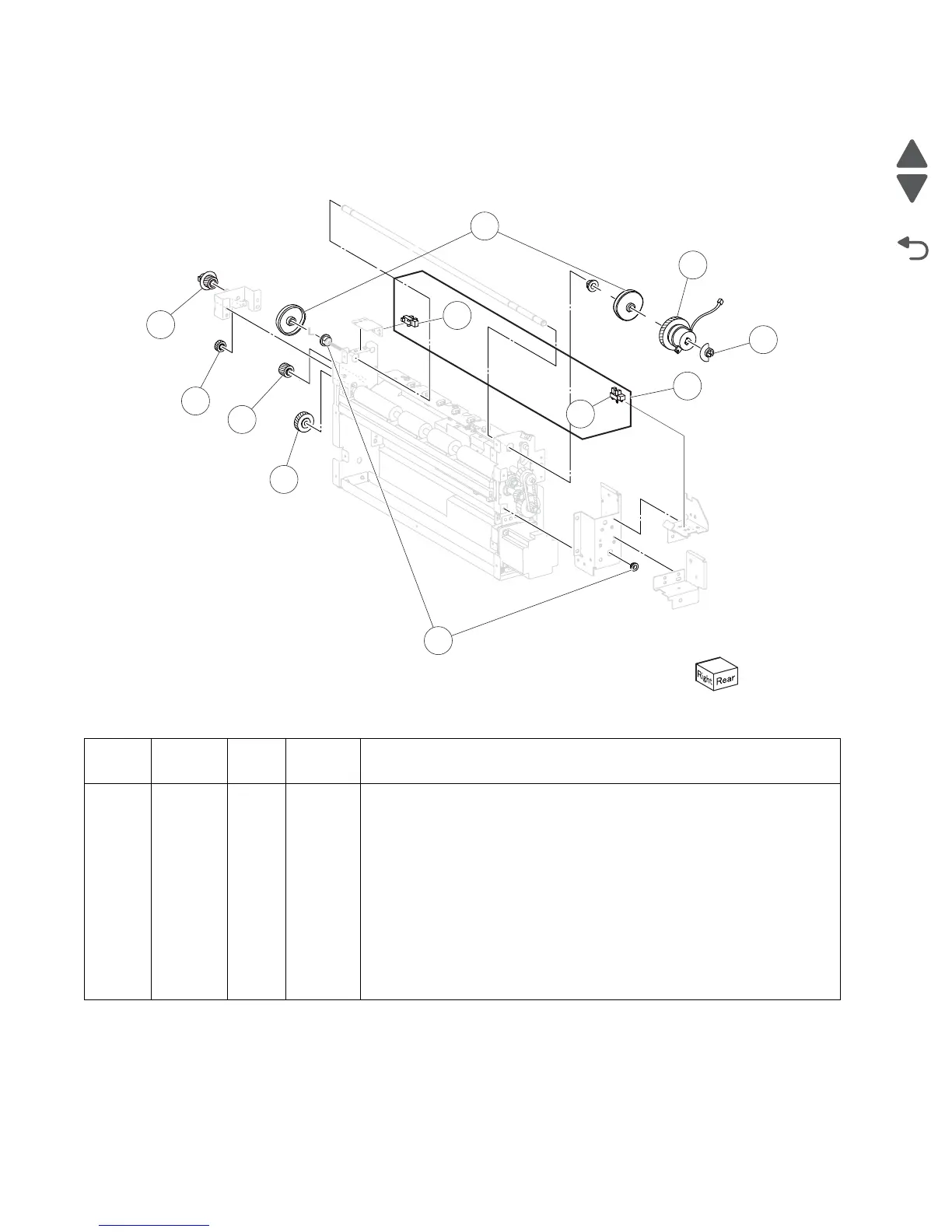

Assembly 58: Finisher—media drive 2
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
1 40X6847 11Bridge decurler cam
2 40X6848 11Bridge decurler cam clutch
3 40X3917 11Sensor flag
4 40X0825 31A) Sensor (decurler cam HP)
B) Sensor (decurler cover interlock)
5 40X1388 11Bearing
6 40X6111 11Bridge one way gear
7 40X6850 11Bridge gear 18T
8 40X6851 11Bridge gear 16T
9 40X6849 11Bridge knob gear 18T
1
9
8
7
6
2
3
5
B
A
4
