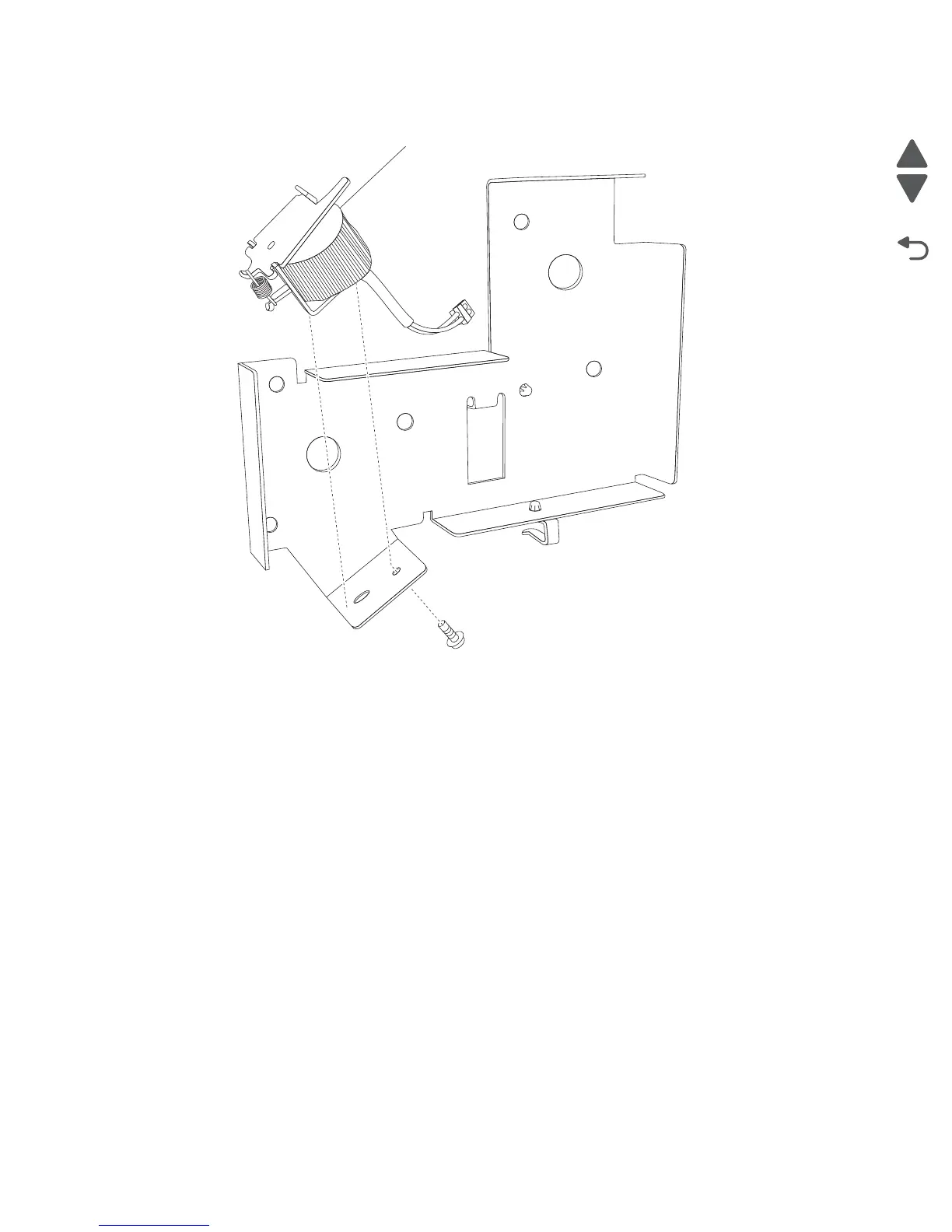

5. Remove the booklet fold solenoid (A).
Booklet folding/exit drive motor assembly removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Disconnect the connectors from the booklet unit motor assembly (A).
3. Remove the five screws securing the booklet folding/exit drive motor assembly (A) from the booklet gear
train frame.
4. Remove the booklet folding/exit drive motor assembly (A).
Booklet front tamper guide removal
1. Remove the booklet unit assembly. See “Booklet unit chassis removal” on page 4-263.
2. Remove booklet unit assembly left cover. See “Booklet unit assembly left cover removal” on
page 4-262.
A
