HCF lift cables removal
1. Remove the HCF media tray assembly. See “HCF media tray assembly removal” on page 4-366.
2. Remove the tray lift gear bracket. See “HCF tray lift gear bracket removal” on page 4-381.
3. Remove the HCF media tray front cover. See “HCF media tray front cover removal” on page 4-367.

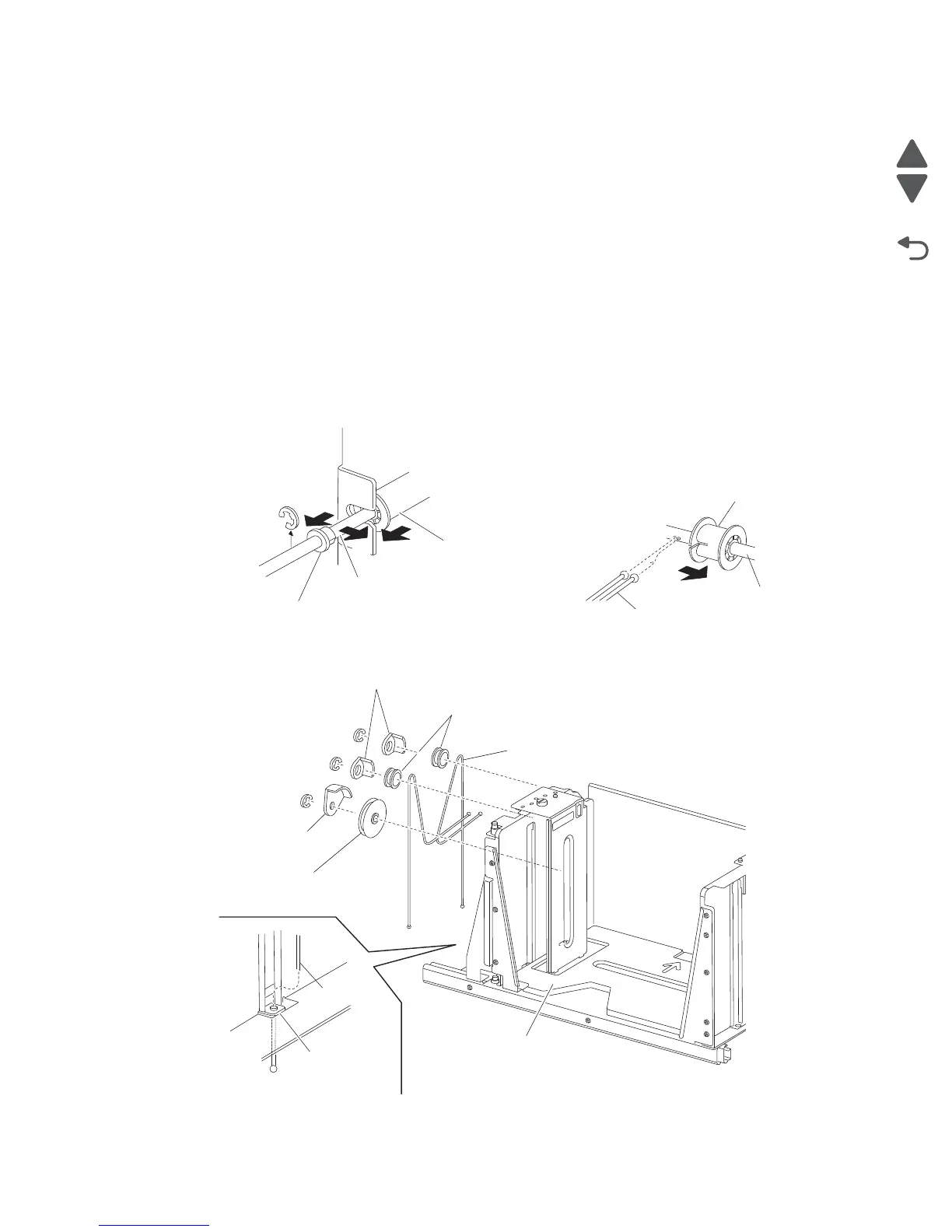

4. Remove the e-clip securing the bushing (A) to the tray lift shaft assembly (B) at the rear on the right side of
the HCF media tray.
5. Move the bushing (A) inward in the direction of the arrow (1) to remove it from the tray.
6. Move the tray lift shaft assembly (B) outward in the direction of the arrow (2) to remove it from the tray.
7. Move the tray lift shaft pulley (C) inward in the direction of the arrow (3) to detach the rear cables (D).
8. Detach the rear cables (D) from the tray lift shaft assembly (B).
9. Remove the two e-clips securing the small cable pulleys (E) on the top rear of the HCF media tray.
10. Remove the two small guides (F) and the two small pulleys (E).
11. Remove the e-clip securing the large pulley (G) to the tray.
12. Remove the large guide (H) and the large pulley (G).
13. Remove the two rear cables (D) from the bottom plate (I).
14. Remove the e-clip securing the bushing (J) to the tray lift shaft assembly (B).
Rear side
E-clip
(1)
C
B
A
(2)
(3)
C
F
E
D
H
G
D
I
I
(3)
D
B
