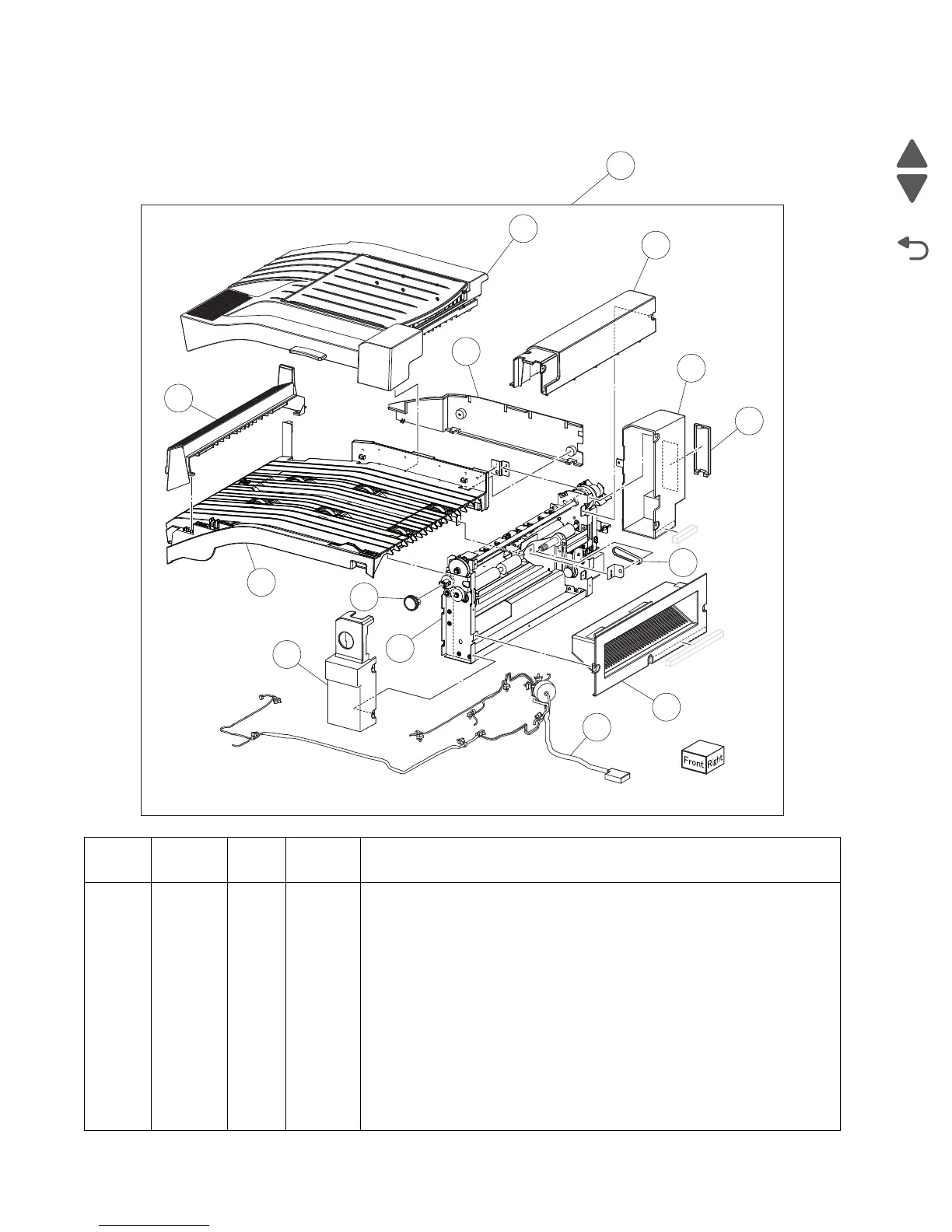

Assembly 55: Finisher—bridge unit
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
55-1 40X6826 11Bridge unit
2 40X6838 11Bridge top door assembly
3 40X6836 11Bridge decurler top cover
4 40X6833 11Bridge decurler rear cover
5 40X7405 11Connector cover
6 40X6830 11Bridge unit small belt
7 40X6835 11Bridge decurler right cover
8 40X6837 11Bridge interface cable
9 40X6829 11Bridge media exit transport
10 40X6827 11Clutch knob
11 40X6831 11Bridge front cover
3
4
5
6
7
8
11
9
10
12
13
14
2
1
