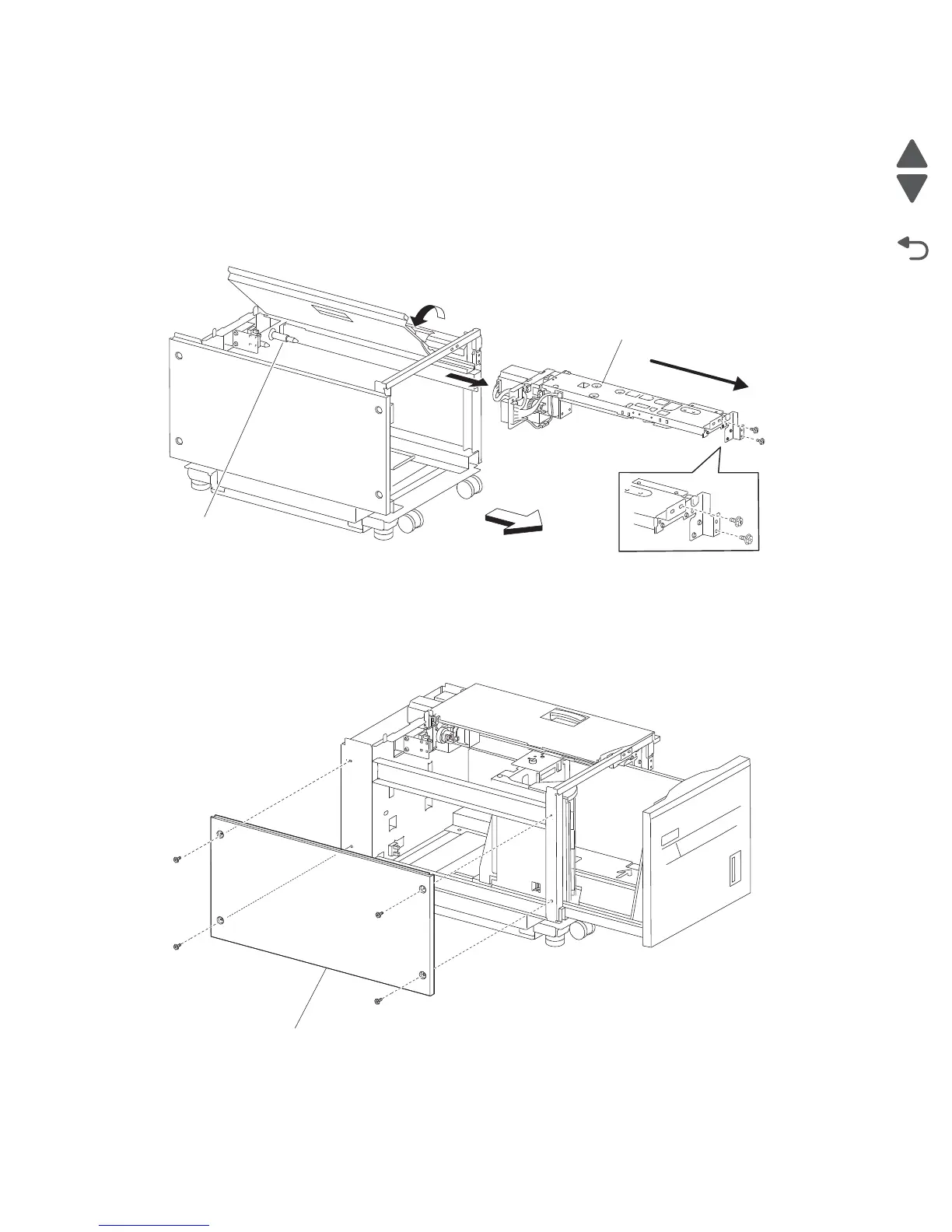

HCF feed unit removal
1. Remove the HCF media tray assembly from the printer. See “HCF media tray assembly removal” on
page 4-366.
2. Remove the two screws securing the media feed unit assembly (A) on the front side.
3. Pull the media feed unit assembly (A) out of the machine in the direction of the arrow.
Note: More force to remove the media feed unit (A) may be required due to the electrical connector inside
the machine.
HCF left cover removal
1. Remove the five screws securing the HCF left cover (A) to the unit.
2. Remove the HCF left cover (A).
A
Front
Guide shaft
A
