Lexmark C950 - Mpf

5-12 Service Manual
5058-030
Go Back
Previous
Next
MPF

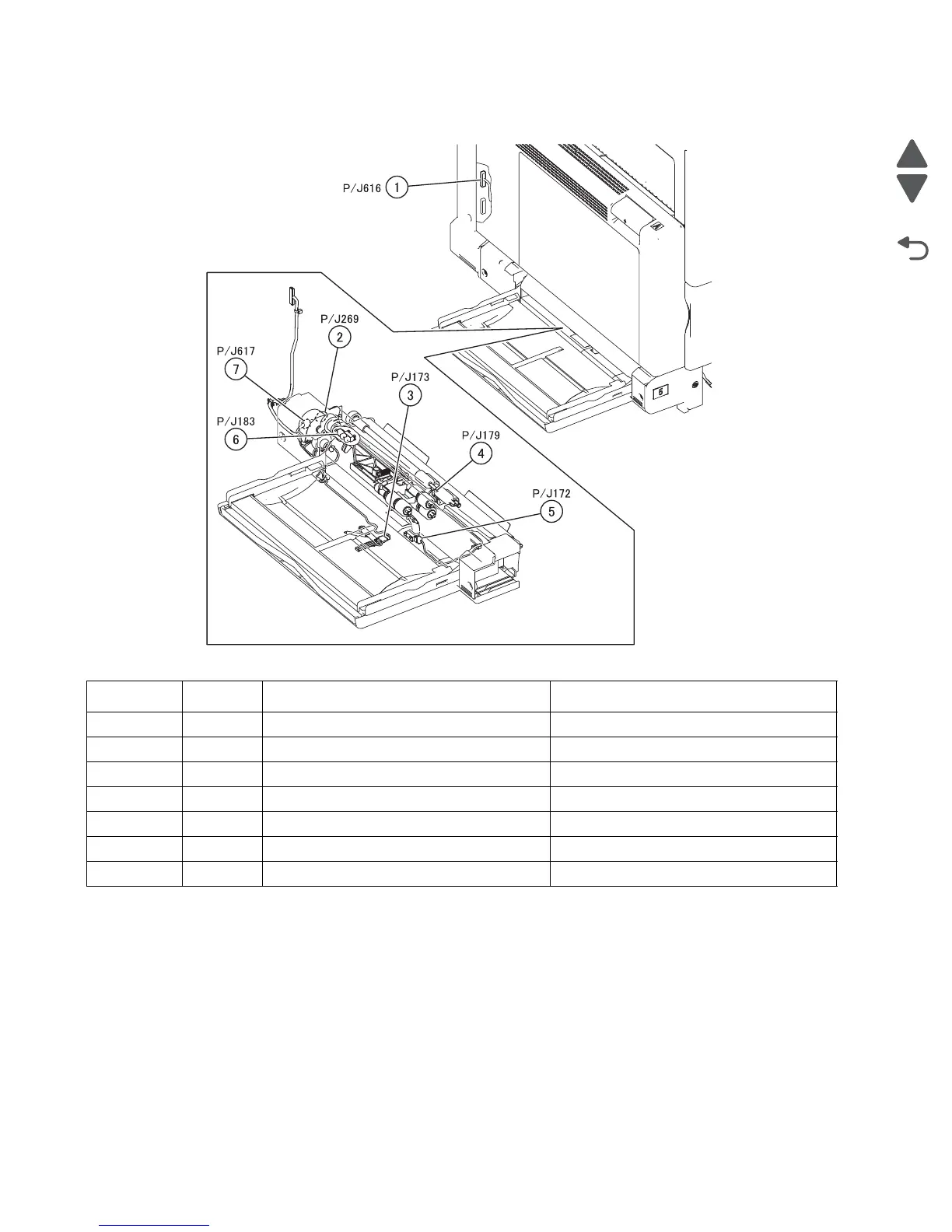

Plug/Jack Callout Plug/jack description Connects to
P/J172 5 MPF tray feeder Lower engine PCBA
P/J173 3 MPF tray feeder Lower engine PCBA
P/J179 4 MPF tray feeder Lower engine PCBA
P/J183 6 MPF tray feeder Lower engine PCBA
P/J269 2 MPF tray feeder Lower engine PCBA
P/J616 1 MPF tray feeder Lower engine PCBA
P/J617 7 MPF tray feeder Lower engine PCBA
