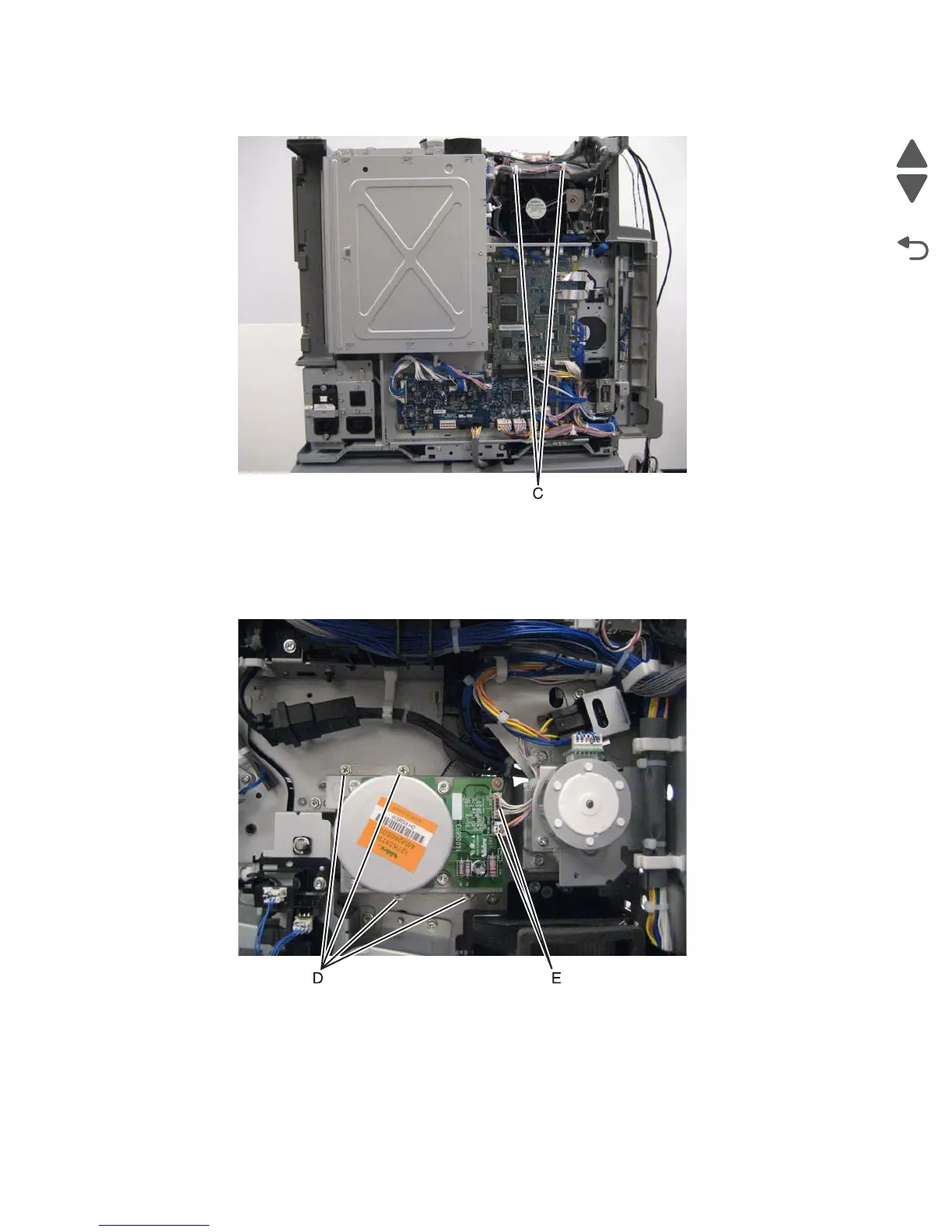

4. Release the two clamps (C) to release the harness.
5. Swing the PCBA door open.
6. Remove the two cables (D).
Warning: When disconnecting the two wire harnesses from the motor, make sure that the release hook is
pressed or the connections will be damaged.
7. Remove the four screws (E) securing the fuser/lower redrive/1st BTR retract motor to the machine.
8. Remove the fuser/lower redrive/1st BTR retract motor from the machine.
Inner plate removal
1. Remove the printer front door. See “Printer front door removal” on page 4-10.
2. Remove the transfer belt cleaner. See “Transfer belt cleaner removal” on page 4-172.
3. Remove the waste toner box.
