Media tray registration path
Transfer
After the edge of the media is aligned, the registration roll feeds the media between the 2nd transfer roll and the
transfer belt in preparation for toner transfer. At this point, a toner image is already embedded on the transfer
belt. As the media passes between the transfer belt and the 2nd transfer roll, the toner image is also transferred
to the media.
Fusing/exit
The media with the embedded toner image needs to go through the fuser assembly to permanently bond the
toner image to the sheet. When the sheet passes between the heat belt and the pressure roll, the combination of

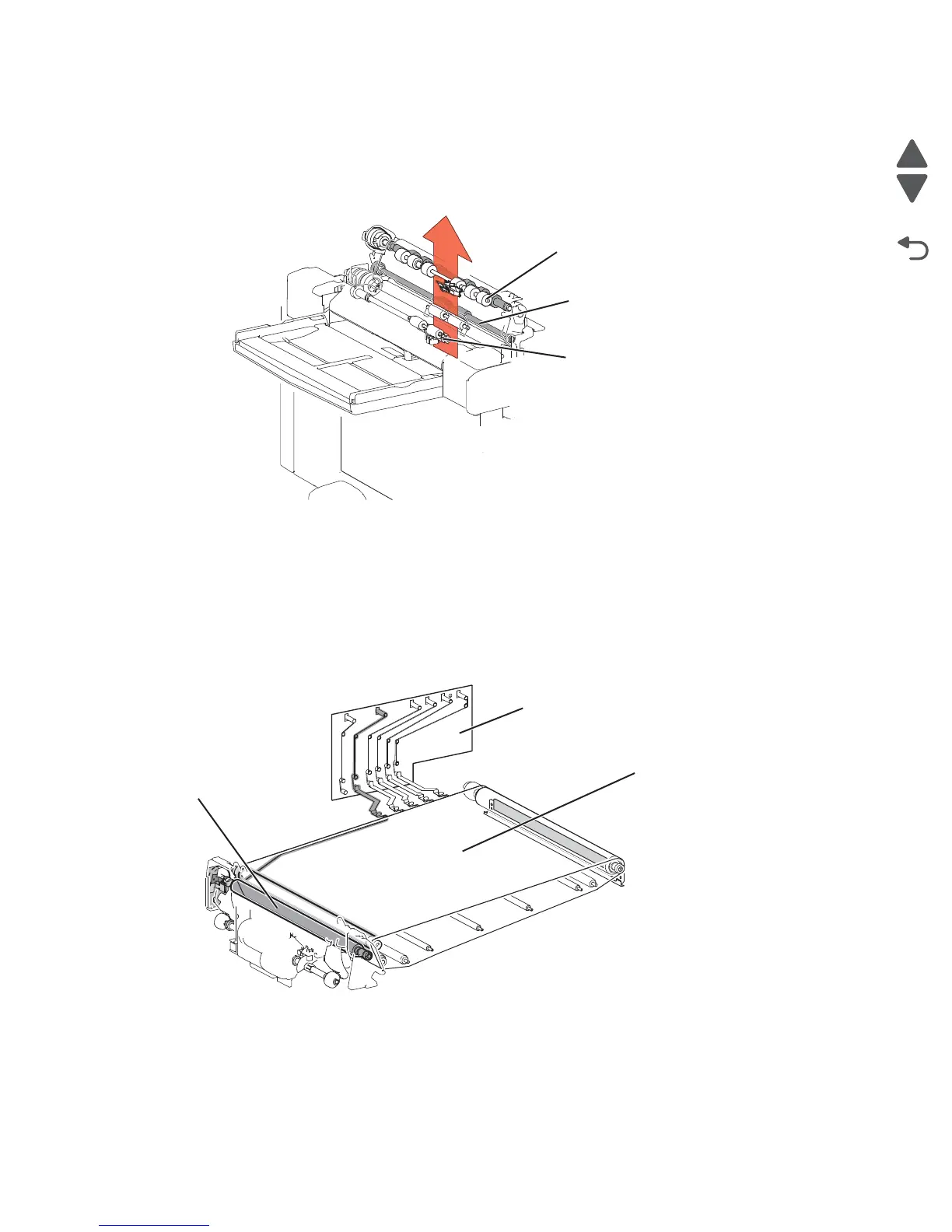

Registration roll
Media tray
transport roll
MPF transport roll
HVPS
Transfer belt
2nd transfer roll
assembly
