Lexmark C950 - Sensor (Tray 5 Media Out) Removal

Repair information 4-385
5058-030
Go Back
Previous
Next

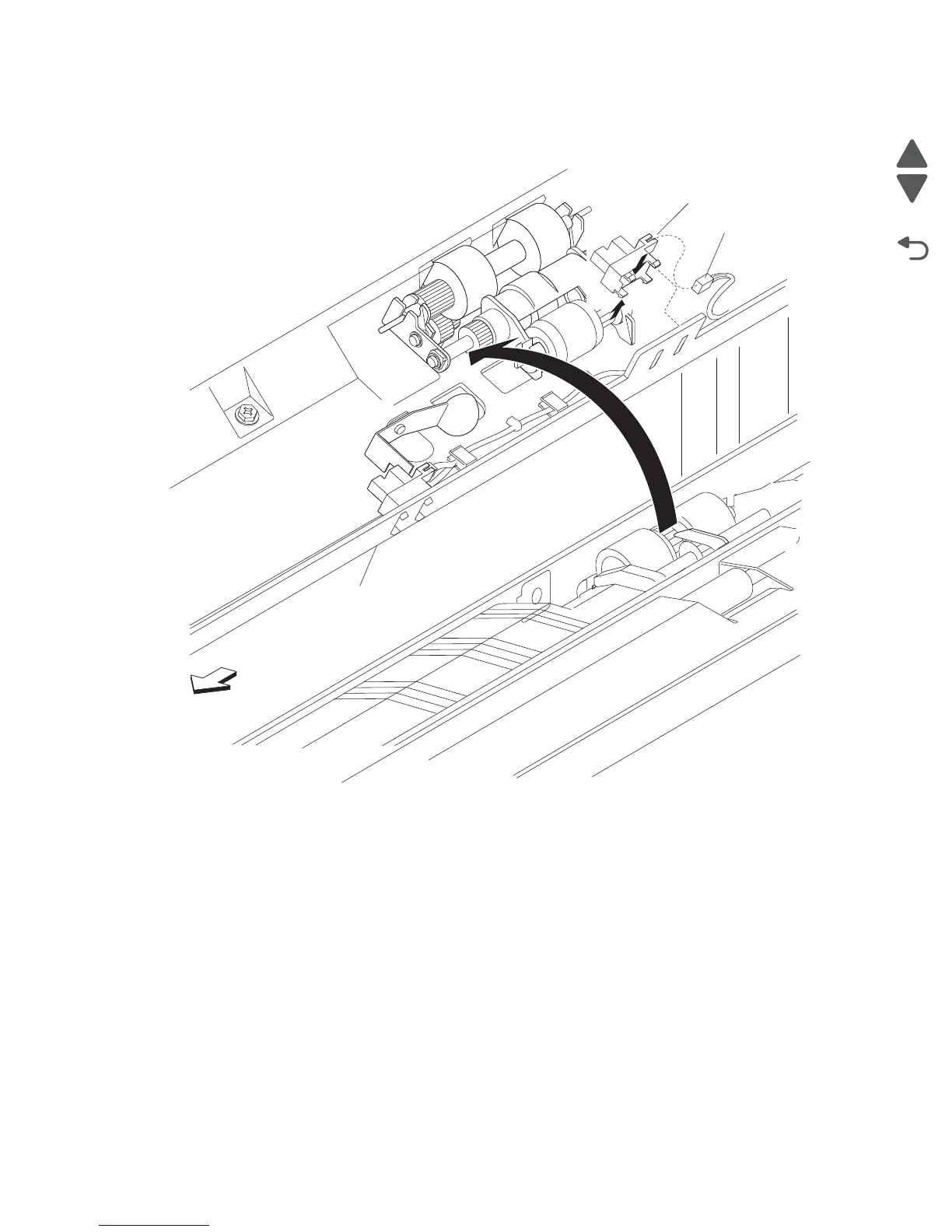

4. Release the hooks securing the sensor (tray 5 media level) (A) from the HCF feed unit assembly (B).
5. Remove the sensor (tray 5 media level) (A).
Sensor (tray 5 media out) removal
1. Open the HCF top door.
2. Open the HCF feed unit assembly.
3. Remove the connector from the sensor (tray 5 media out) (A).
A
B
Front
Connector
