Lexmark C950 - Assembly 45: Redrive 1

7-46 Service Manual
5058-030
Go Back
Previous
Next

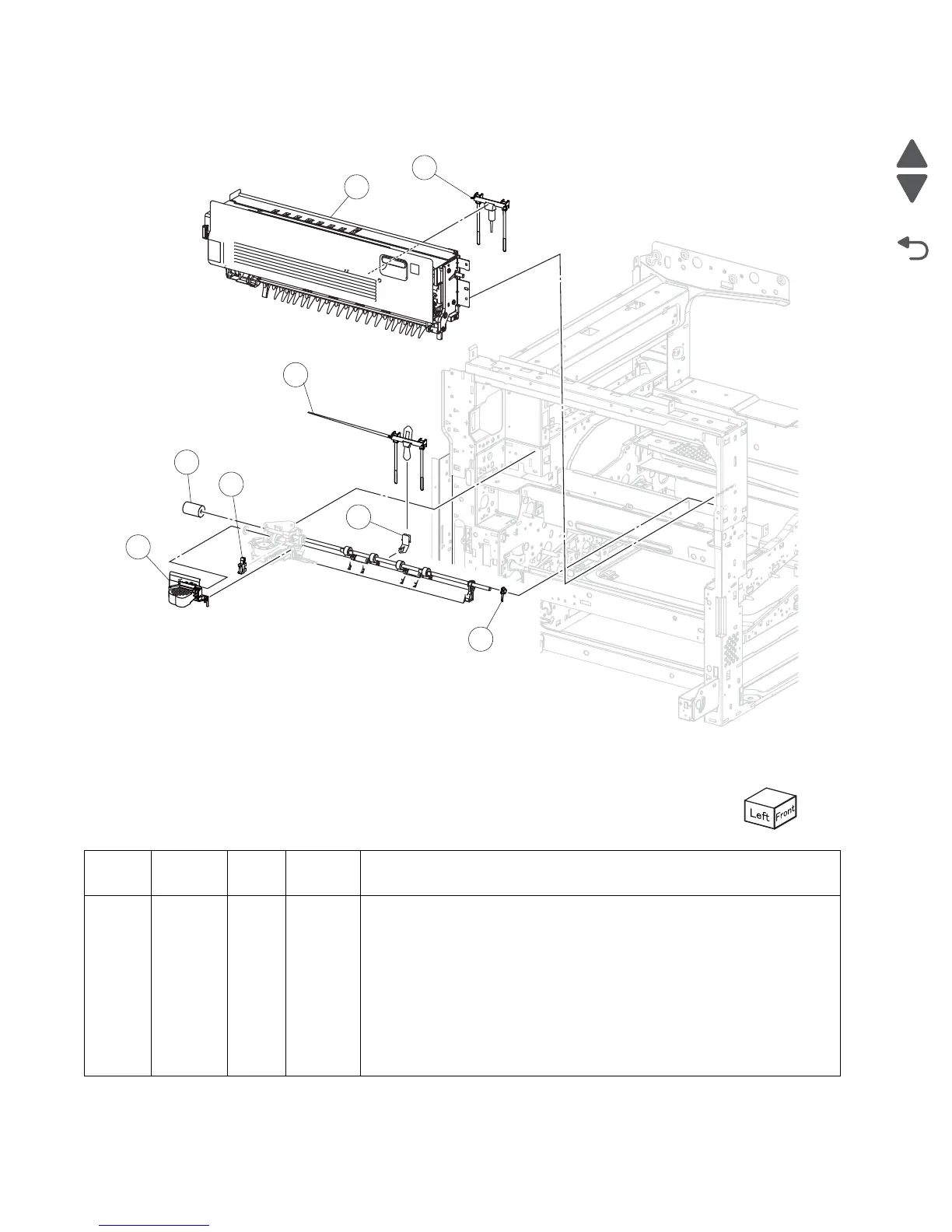

Assembly 45: Redrive 1
Asm-
index
Part
number
Units/
mach
Units/
FRU
Description
45-1 40X8361 11Media bail (upper internal bin)
2 40X6723 11Upper redrive assembly
3 40X6722 11Media bail (standard bin)
4 40X6724 11Lower redrive guard
5 40X6721 11Lower redrive front bushing
6 40X7373 11Plastic motor cover
7 40X6720 11Lower redrive 19T gear
8 40X0588 17 1 Sensor (lower redrive shift HP)
6
5
4
8
7
3
1
2
